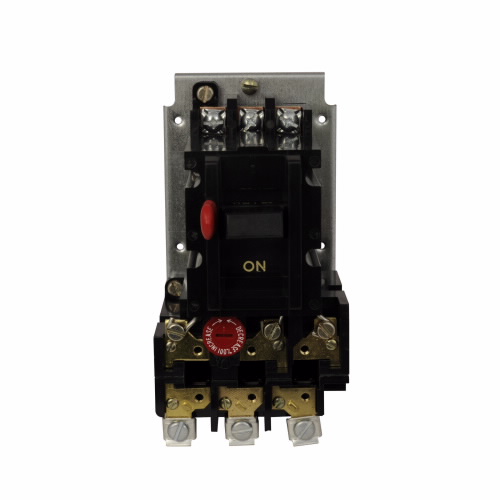

EATON B100M0CA Manual Motor Starter, Non-Reversing, 3 Poles, 45 A, NEMA Size M-0, Thermal Protection
Item: BJ7KYCModel: B100M0CACross Ref: 12M044
7 In Stock
Ships within 2 days via
10.00% off
€1,403.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Starter |
| Amps Rating | 26A , 45A |
| Depth | 4.59" |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | Not Applicable |
| Height | 5 21/25" |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Three Phase | 5 hp |
| Horsepower @ Three Phase - 208v Ac | 2 hp |
| Horsepower @ Three Phase - 600v Ac | 5 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 230v | 3 hp |
| Hp @ 3 Phase - 200v | 2 hp |
| Hp @ 3 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 480v | 5 hp |
| Hp @ 3 Phase - 575v | 5 hp |
| Hp @ Single Phase - 240v Ac | 3 hp |
| Includes Pilot Light | No |
| Ip Rating | Not Applicable |
| Max Current (ac) | 45A |
| Max. Overload Relay Amps Setting | Not Applicable |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | Not Applicable |
| Nema Size | Nema M-0 |
| Number Of Poles | 3 |
| Operator | Push Button |
| Overall Depth | 5 1/2" |
| Overall Height | 6.3" |
| Overall Width | 1.77" |
| Overload Protection Type | Thermal |
| Phase | Three |
| Phase Loss Sensitivity | No |
| Pilot Light | No |
| Product Height | 6.3" |
| Product Width | 1.77" |
| Reversing Capability | Non-reversing |
| Series | B100 Series |
| Special Features | Pushbutton Operator |
| Standards | Csa, Ul Listed |
| Starter Style | NEMA |
| Thermal Units Required | 3 (Not Included) |
| Trip Class | Class Based On Thermal Unit Selected |
| Width | 3.19" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 16 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 4.5 |
| Country of Origin | US |
Product Variants
| Model | Nema Size | Number Of Poles | Height | Coil Voltage | Hp @ 3 Phase - 240v | Depth | Hp @ 3 Phase - 480v | Hp @ 3 Phase - 575v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W200MGCNCY7 | - | 3 | 12" | - | - | - | - | - | €57,542.15 | |
| W200MGCNCY7Y11 | - | 3 | 12" | - | - | - | - | - | €57,542.15 | |
| BN16KN0A | - | - | 11.35" | 120V AC | - | - | - | - | - | RFQ
|
| BN16KN0B | - | - | 11.35" | 240V AC | - | - | - | - | €2,572.61 | |
| W+200M5CNCY10 | - | - | 10 11/25" | - | - | - | - | - | €47,961.74 | |
| W+200M6CFCY4 | - | - | 8.86" | - | - | - | - | - | €52,398.78 | |
| W+200M6CFCY4Y7 | - | - | 8.86" | - | - | - | - | - | €52,398.78 |
