FREE delivery on orders over €150
EATON AGPH12015 Surge Protection Device, Single Phase, 120 VAC, 1 Poles, 2 + Ground Wires
Item: CJ3PHTModel: AGPH12015Cross Ref: 30UJ05
7 In Stock
Ships within 2 days via
10.00% off
€811.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Protection Device |
| Depth | 4.83" |
| Enclosure Material | Polycarbonate |
| Enclosure Nema Rating | 1 |
| Filtering | Yes |
| Filtering / Nonfiltering | Filtering |
| Includes Surge Counter | No |
| Length | 4 11/25" |
| Max. Continuing Operating Voltage | 150V AC |
| Max. Surge Current Per Mode | 30 kA |
| Max. Surge Current Per Phase | 60 kA |
| Modes Of Protection | L G, L N, N G |
| Modular | Yes |
| Modular / Nonmodular | Modular |
| Mounting Style | DIN Rail |
| Noise Attenuation | 75 dB |
| Nominal Discharge Current | 15A |
| Number Of Poles | 1 |
| Number Of Wires | 3 |
| Phase | Single |
| Product Height | 8" |
| Product Width | 6" |
| Short Circuit Current Rating | 5 kA |
| Voltage | 120V AC |
| Voltage Protection Rating | 330V (L-G, N-G), 400V (L-N) |
| Width | 2.87" |
| Wire Gauge | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 12.27 |
| Ship length (cm) | 11.28 |
| Ship width (cm) | 7.29 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Max. Surge Current Per Phase | Nominal Discharge Current | Short Circuit Current Rating | Max. Continuing Operating Voltage | Depth | Max. Surge Current Per Mode | Voltage Protection Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AGPH12020 | 120V AC | 60 kA | 20A | 5 kA | 150V AC | 4.83" | 30 kA | 330V (L-G, N-G), 400V (L-N) | €1,020.80 | |

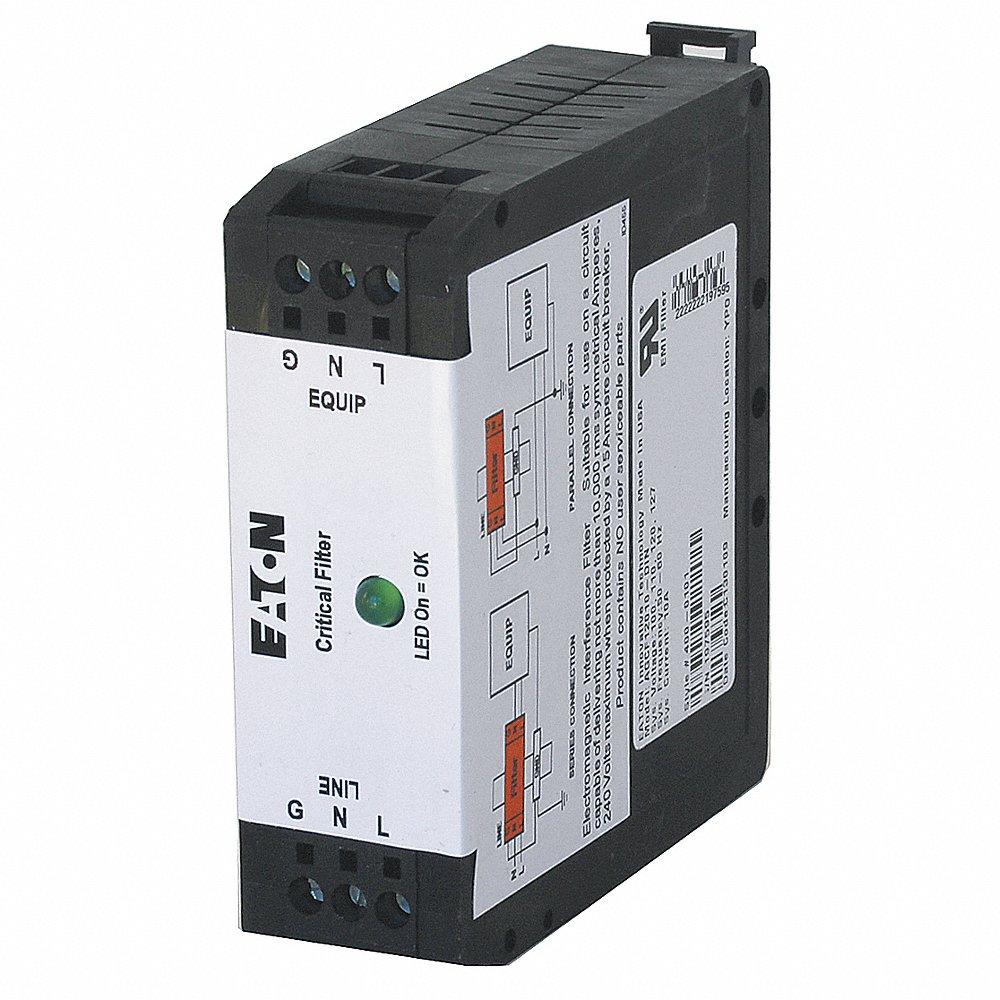

| AGCF12010-DIN2 | 120V AC | 40 kA | 5 kA | 10 kA | 150V AC | 1 1/4" | 20 kA | 500V (L-G, L-N, N-G) | - | RFQ
|
| AGCF02410-DIN | 24V DC | 6 kA | 3 kA | 10 kA | 30V AC/DC | 1 1/4" | 2 kA | - | €406.14 | |
| AGPH12010 | 120V AC | 60 kA | 10A | 5 kA | 150V AC | 4.83" | 30 kA | 330V (L-G, N-G), 400V (L-N) | €672.42 | |
| AGCF24010-DIN2 | 240V AC | 30 kA | 3 kA | 10 kA | 275V AC | 1 1/4" | 10 kA | 800V (L-N), 900V (L-G, N-G) | €620.32 |
