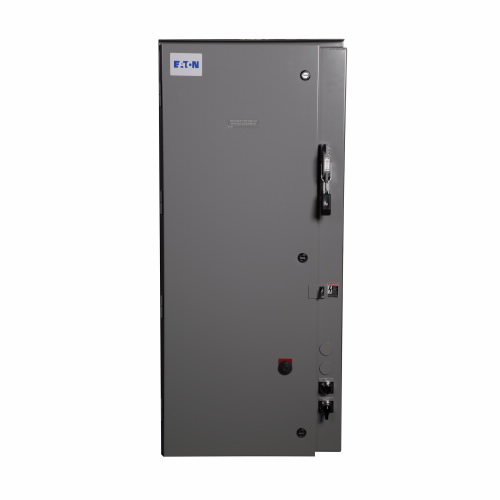

EATON 84-33121-1 Motor Control Starter, 460V, 135 A, 75 Hp, 24 Vdc, 150A Breaker, Nema 3R, Start Pushbutton
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Accessories | CPT With Power Supply, Hand/Off/Auto Selector Switch, Start Pushbutton, Service Entrance Rating With Ground Bar, Oversize Enclosure |
| Amps Rating | 135A |
| Circuit Breaker Rating | 150A |
| Coil Voltage | 24V DC |
| Frame Size | 110 mm |
| Height | 35" |
| Hp | 75 hp |
| Length | 8 4/5" |
| Nema Enclosure Rating | NEMA 3R |
| Notes | Digital Interface Module (DIM) Is Mounted On Door As Option. Standard Duty Horsepower Ratings Are For 300% Ramp Current, 30 Seconds Ramp Time, And Three Starts Per Hour. Consult Eaton For Other Ratings. Hp Based On 1.15 Service Factor. |
| Product Name | Eaton Freedom NEMA motor control starter |
| Type | Combination Reduced Voltage - Circuit Breaker |
| Voltage Rating | 460V |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 29 1/2" |
Shipping Info:
| Ship weight (kg) | 33.75 |
| Ship height (cm) | 88.9 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 74.93 |
| Country of Origin | US |
