EATON 7565K7 Toggle Switch, DPST, 6 Connections, Off/On, 10A, 250 VAC/15A, 125 VAC, 3/4HP
Item: BJ6XFZModel: 7565K7Cross Ref: 21EW09
7 In Stock
Ships within 2 days via
5.00% off
€15.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Toggle Switch |
| Ac Contact Rating | 10A @ 250V, 15A @ 125V |
| Actuator Color | Silver |
| Actuator Length | 14/25" |
| Bushing Length | 0.469" |
| Circuit Position Down | On |
| Circuit Position Up | On |
| Contact Form | DPST |
| Features | Rotate Keyway 180° |
| Hp | 3/4 hp |
| Included | Panel Mounting |
| Lever Length | 0.563" |
| Max. Operating Temp. | 150°F |
| Metal Actuator Finish | Silver |
| Min. Operating Temp. | 0°F |
| No. Of Connections | 6 |
| No. Of Poles | 2 |
| No. Of Positions | 3 |
| Overall Depth | 1.13" |
| Overall Height | 2.13" |
| Overall Width | 0.62" |
| Panel Mounting Hole Dia. | 1/2" |
| Product Height | 1 1/5" |
| Product Type | Toggle Switch |
| Product Width | 3/4" |
| Series | 7500 Series |
| Stem Color | Silver |
| Stem Dia. | 0.47" |
| Stem Dia. And Thread Size | 1/2" |
| Stem Length | 0.47" |
| Stem Thread Size | 15/32"-32 |
| Switch Function Configuration | On/None/On |
| Terminal Connection Type | Spade terminals |
| Terminals | Spade |
Shipping Info:
| Ship height (cm) | 3.05 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 1.91 |
| Country of Origin | MX |
Product Variants
| Product | Model | Terminals | Contact Form | Ac Contact Rating | Actuator Length | Stem Length | Actuator Color | Stem Dia. | Stem Dia. And Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

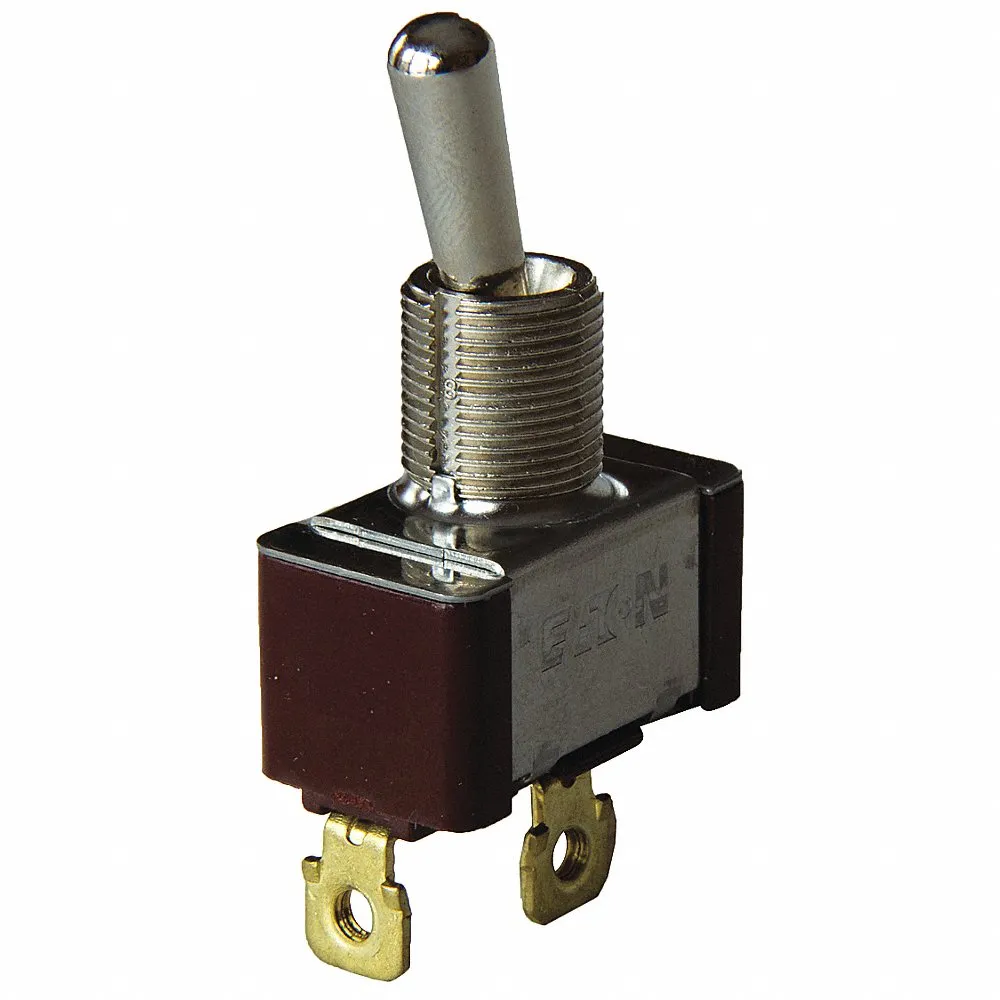

7500K14 | Screw | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €10.23 | |
 |

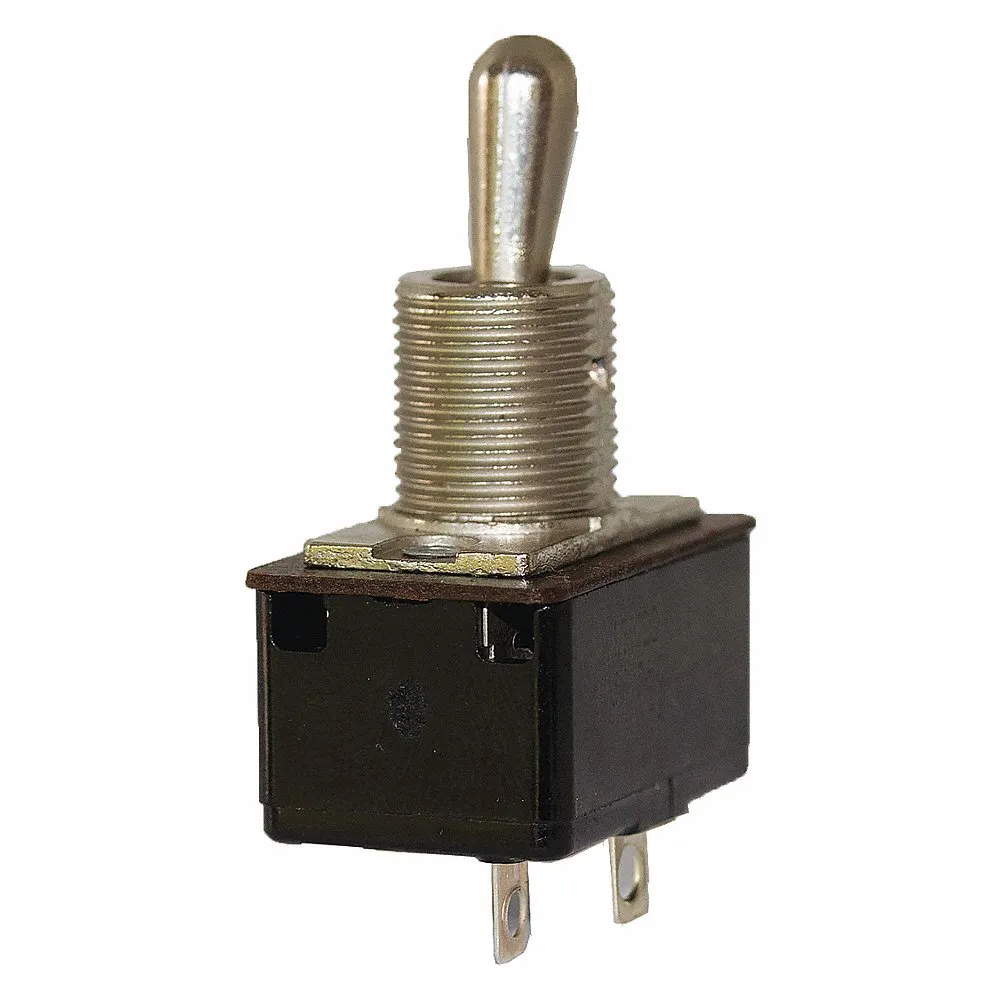

7501K13 | Solder Lug | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €8.28 | |
 |
7501K15 | Quick Connect | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €7.98 | |
|
7503K15 | Spade | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €14.68 | |
 |

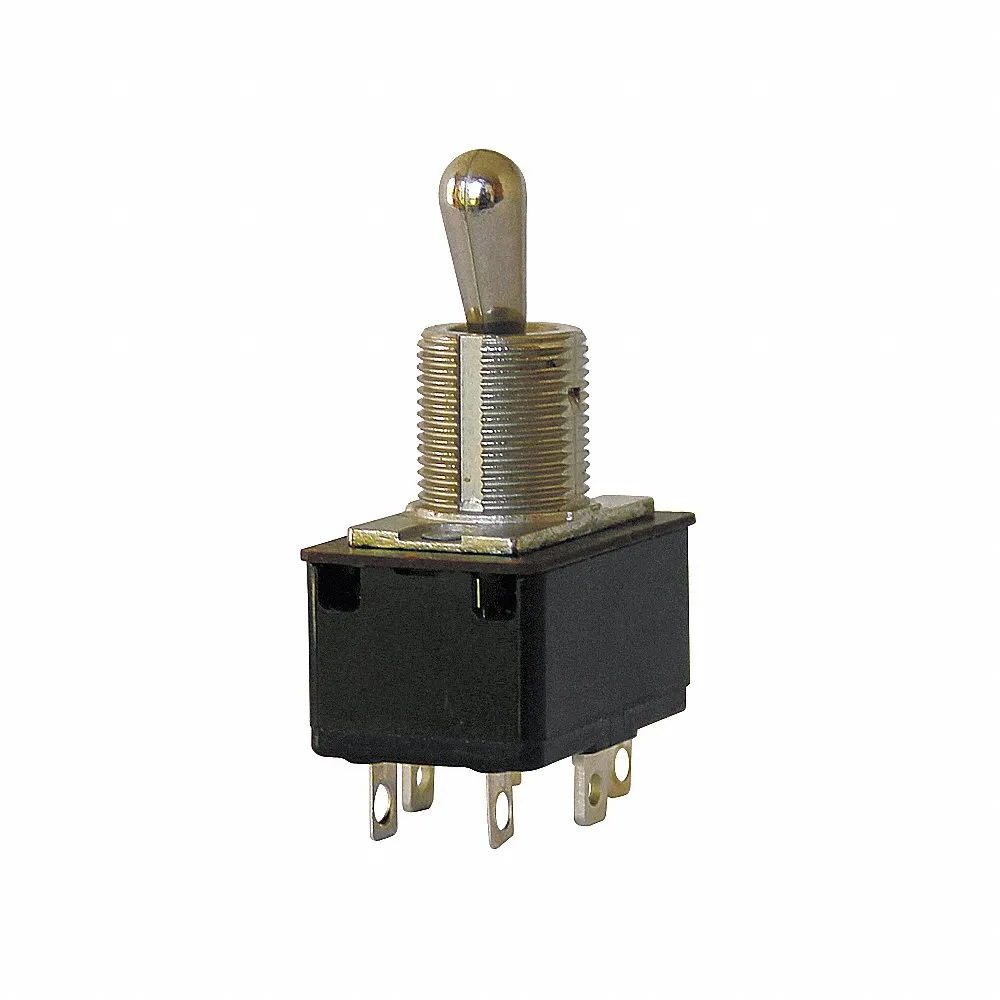

7503K13 | Solder Lug | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €8.12 | |
 |

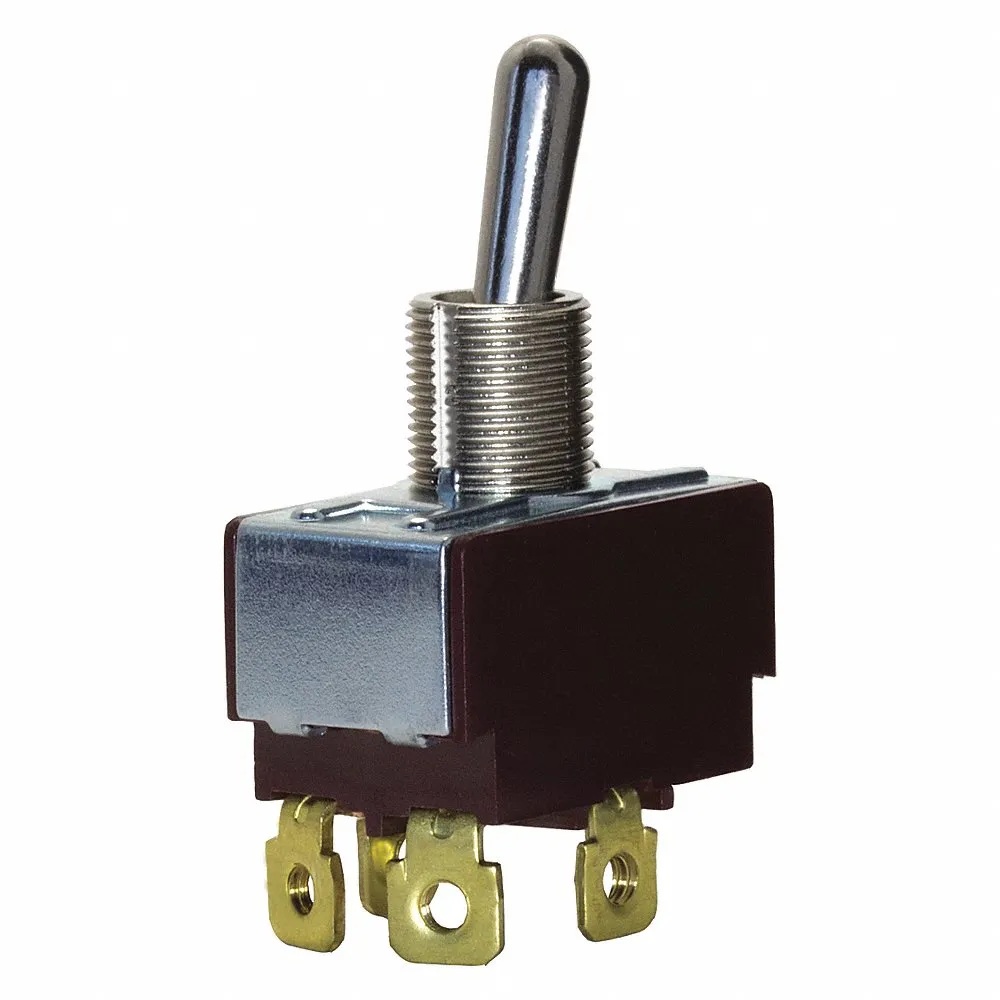

7502K13 | Screw | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €14.13 | |
|
7504K4 | Screw | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | Silver | 0.47" | 1/2" | €12.17 |
