EATON

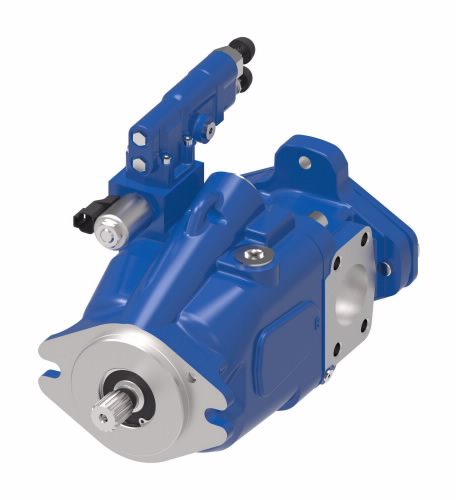

EATON 421AK02109B Open Circuit Piston Pump

Item: AN9VQXModel: 421AK02109B

Check Availability

In Stock

Get it by Thursday, Dec 25

€3,979.11 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Open Circuit Piston Pump
Bearing Life At Rated Pressure	3320 hrs.
Code Title	Pressure Compensated/Pressure Flow Compensated
Continuous Allowable Case Pressure	230 Bar
Control Special Features	Bleed Down Orifice
Controller Type	Pressure And Flow Compensator With Torque Control And .4375-20 Sae O-Ring Load Sense Port Left Side
Design Code	Second
Diagnostic Pressure Ports	.4375-20 Unf-2B Sae O-Ring Ports-Suction And Pressure-Plugged
Displacement	80 cc/rev.
Drain Port Size And Location	0.875-14 UNF-2B O-Ring Port, Top (28CC And 45CC)
Flow Compensator Setting - Maximum	23.44 Bar
Fluid Cleanliness	21/18/13
Front Mounting	2 Bolt B
Height	8.85"
Housing Material	Cast Iron
Identification	Mark Eaton Product Number And Full Model Code On Label
Inlet Pressure	210 Bar
Input Shaft	15 Tooth 16/32 Spline, Shaft Extension 46 [1.81]
Input Speed At 0.8 Bar Absolute	1800 RPM
Input Speed At 1.0 Bar Absolute	2200 RPM
Length	12.13"
Main Port Size And Location	Side Ports, Suction - 2.00 SAE J518 4-Bolt Split Flange Port Standard Pressure Series (Code 61), Pressure - 1.00 SAE J518 4-Bolt Split Flange Port Standard Pressure Series (Code 61)
Max. Displacement Option	External Manual Stroke Adjustment (Set at Maximum)
Max. Input Power	61.7 kW
Max. Input Torque	2372 lbs.-in.
Max. Pressure Compensator Setting	213.7 Bar
Max. Recommended Operating Viscosity	40 cST
Maximum Case Drain Temp.	220°F
Maximum Case Pressure	250 Bar
Maximum Input Speed	3600 RPM
Min. Flow Compensator Setting	20.68 Bar
Min. Input Speed	600 RPM
Min. Pressure Compensator Setting	206.8 Bar
Min. Recommended Operating Viscosity	16 cST
Nominal Pressure Rating	3335 psi
Paint	Blue Primer Per Spec 209-13Cd
Peak Pressure Rating	3625 psi
Response Time	26 ms
Shaft Rotation	Right
Shaft Seal Material	Fluorocarbon Rubber
Theoretical Input Torque At Max. Displacement	268 N-m
Torque Control Setting	0 lbs.-in.
Width	5 3/4"

Shipping Info:

Ship weight (kg)	25.25
Ship height (cm)	22.48
Ship length (cm)	30.81
Ship width (cm)	14.61
Country of Origin	US

Product Variants

Model	Displacement	Price
421AK00020B	62.3 cc/rev.	€3,079.73
421AK00391B	62.3 cc/rev.	€3,143.01
421AK00392B	62.3 cc/rev.	€3,393.30
421AK00962B	41 cc/rev.	€2,540.30
421AK01095B	62.3 cc/rev.	€3,143.01
421AK00194B	49.2 cc/rev.	€2,666.88
421AK00891B	80 cc/rev.	€4,014.73
