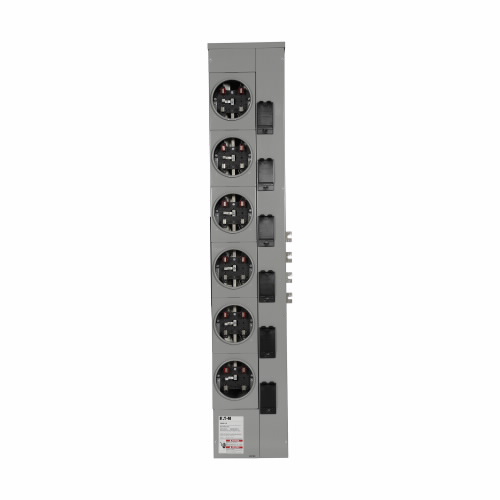

EATON 3MM612R Meter Stack Module With Ring Style Cover, 125A, 3 Phase, 4 Wires, Nema 3R Enclosure
Get it by Tuesday, Dec 23
€1,868.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Meter Stack |
| Amps | 125A |
| Bus Material | Aluminum |
| Bus Rating | 800A |
| Enclosure Type | Indoor/Outdoor |
| Height | 8" |
| Interrupt Rating | Depends On Selected Main Circuit Breaker |
| Length | 55 1/2" |
| Number Of Jaws | 5 |
| Number Of Sockets | 6 |
| Phase | 1, 3 |
| Phase Balance | A-B |
| Secondary Circuit Breaker | BR2_, BRH2_, BRHH2_ |
| Security | Ring |
| Utility Approvals | NC , Dominion, VA , Dominion, MI , DTE Energy (Detroit Edison), ID , Idaho Power, OR , Idaho Power, WA , Seattle City Light, AK , Anchorage Municipal Light & Power, NV , NV Energy, MT , NorthWestern Energy, NE , NorthWestern Energy, SD , NorthWestern Energy, WY , NorthWestern Energy, MD , Baltimore Gas And Electric, DC , PEPCO, MD , PEPCO, WA , Puget Sound Energy, WA , Tacoma Public Utilities |
| Voltage | 120/208V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 15" |
Shipping Info:
| Ship weight (kg) | 35.1 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 140.97 |
| Ship width (cm) | 38.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Type | Voltage | Amps | Phase | Price | |
|---|---|---|---|---|---|---|---|---|
 |
1MM312RC | 41 4/5" | Multiple Metering | 120/240V | 125A | - | €7,766.28 | |
|
1MM312RP | 41 4/5" | - | - | 125A | 1 | €4,166.51 | |
|
1MM312RCP | 41 4/5" | - | - | 125A | - | €7,788.79 | |
 |
1MM312RRLB | 41 4/5" | Multiple Metering | 120/240V | 125A | - | €1,157.05 | |
|
1MM312RRLBCPS | 41 4/5" | Multiple Metering | 120/240V | 125A | - | €6,367.82 | |
|
1MM312RRLBC | 41 4/5" | Multiple Metering | 120/240V | 125A | - | - | RFQ
|
 |
1MM312RRLC | 41 4/5" | Multiple Metering | 120/240V | 200A | - | €8,453.48 |
