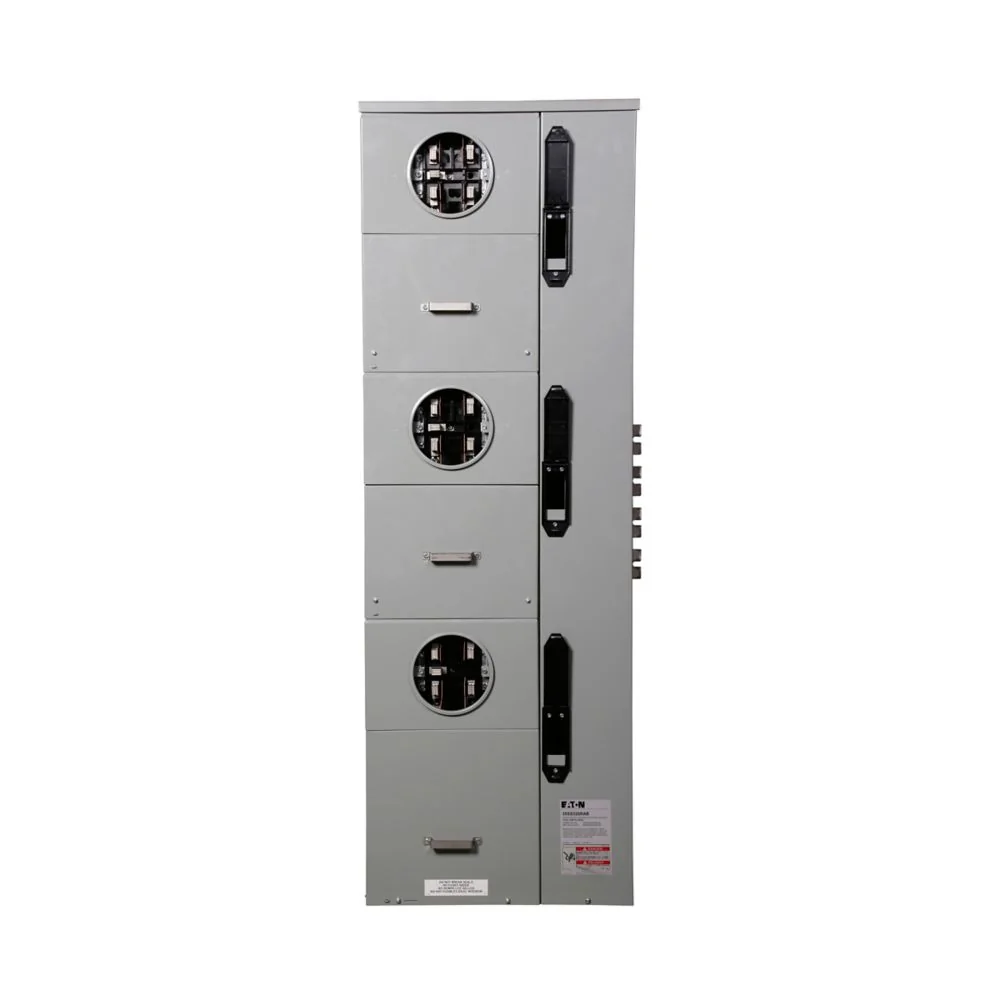

EATON 35SS320RAB Meter Stack Module, 120/240 VAC, 200A, 3 Phase, 4 Wires, 3-Meter, 5-Jaw
Get it by Thursday, Dec 25
€30,682.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Stack Module |
| Amps | 200A |
| Bus Material | Aluminum |
| Bus Rating | 1200A |
| Bypass | Test |
| Enclosure Type | Indoor/Outdoor |
| Height | 12" |
| Interrupt Rating | Depends On Selected Main Circuit Breaker |
| Length | 62" |
| Notes | Main Tenant Feeders Can Exit Top, Bottom, Or Back, If Being Used In Outdoor Application And Exiting The Top, Mount Myer Type Hubs On Rainproof Cap. 120/240V, Single-Phase, Three-Wire Systems And 208Y/120V Network Metering |
| Number Of Jaws | 5 |
| Number Of Sockets | 3 |
| Phase Balance | A-B |
| Secondary Circuit Breaker | EHD2_, CCV2_X, CCVH2_X, CVS2_X, CV2_X, CVH2_X |
| Security | Ring |
| Socket Amperage | 225A |
| Voltage | 120/240V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 20" |
Shipping Info:
| Ship weight (kg) | 75.6 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 157.48 |
| Ship width (cm) | 50.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Voltage | Amps | Phase | Price | |
|---|---|---|---|---|---|---|---|
 |

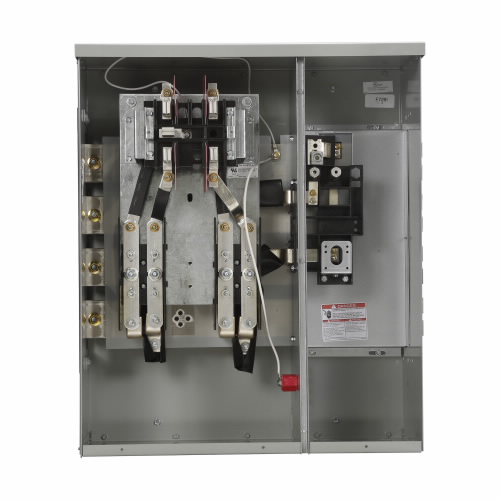

35SS120RAB | 10" | 120/240V | 200A | - | €2,146.48 | |
|
35SS120RCAB | 10" | 120/240V | 200A | - | €12,838.53 | |
 |

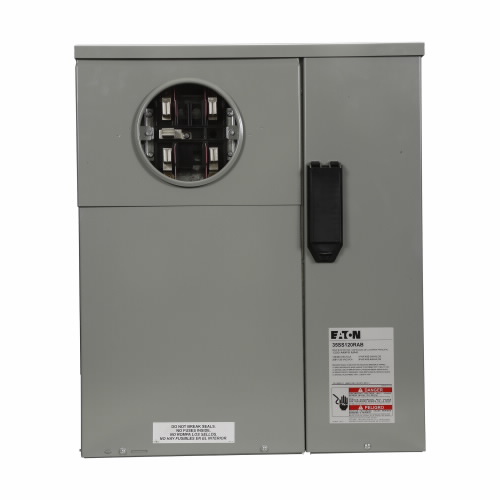

35SS120RABC | 10" | 120/240V | 200A | - | €12,451.19 | |
|
35SS120RCBC | 16" | 120/240V | 200A | 1, 3 | €13,137.07 | |
|
35SS120RAC | 10 3/4" | 120/240V | 200A | - | €9,941.58 | |
 |

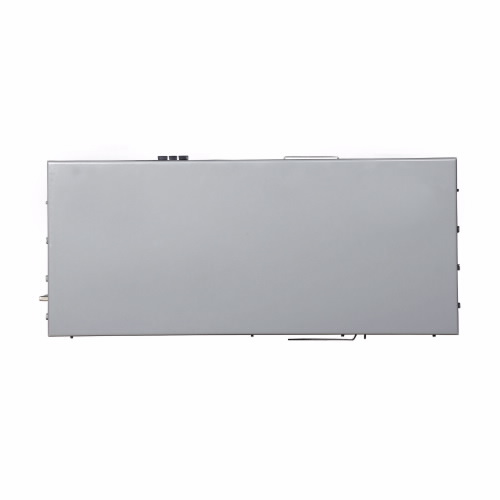

35SS220RAB | 16" | 120/240V | 200A | - | €4,104.58 | |
|
35SS120RBC | 16" | 120/240V | 200A | - | €9,941.58 |
