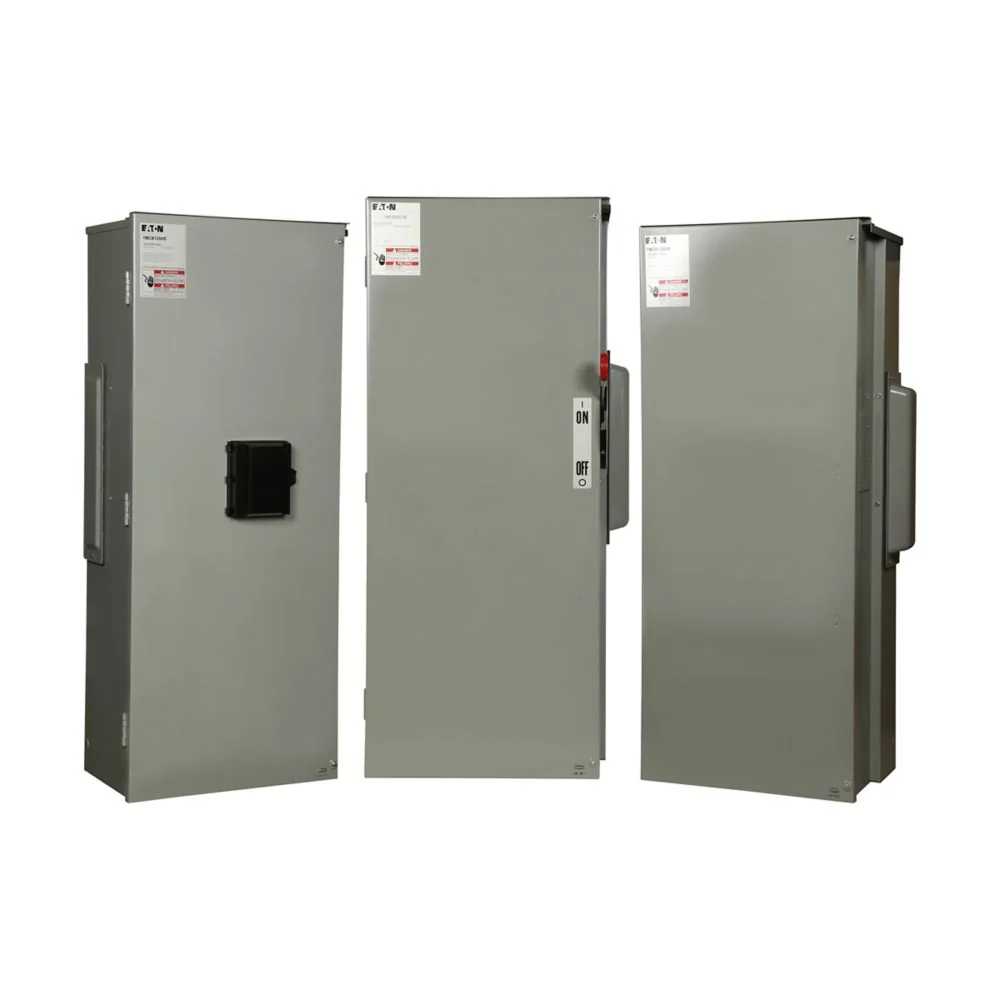

EATON 1BPS1200RT Main Bolted Pressure Switch, 120/240 VAC, 1200A, 1 Phase, 3 Wires, 4P
Get it by Tuesday, Dec 23
€163,810.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pressure Switch |
| Amps Rating | 1200A |
| Bus Material | Copper |
| Feed Type | Overhead |
| Fuse Clip Type | Class L |
| Height | 66.23" |
| Length | 39.59" |
| Nema Enclosure Rating | NEMA 3R |
| Notes | Add Suffix ST To Catalog Number For Shunt Trip. Fuses Not Included. 100 kAIC Rating On Switches With Class L Fuses Installed. |
| Number Of Wires | 4 |
| Phase | 1 |
| Used With | 1MM, 3MM, 35MM, 37MM, 35SS and 37SS modular metering stacks |
| Utility Approvals | NC : Dominion, VA : Dominion, MD : Baltimore Gas and Electric, DC : PEPCO, MD : PEPCO |
| Voltage Rating | 120/240V |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Weight | 600 lbs. |
| Width | 26.35" |
| Wire Size | #4 AWG to 600 kcmil |
Shipping Info:
| Ship weight (kg) | 270 |
| Ship height (cm) | 168.22 |
| Ship length (cm) | 100.56 |
| Ship width (cm) | 66.93 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Phase | Price | |
|---|---|---|---|---|---|
 |
WTRSWT040DL | 0.01" | - | €59.06 | |
|
1BPS1200RB | 66.23" | 1 | €165,643.39 | |
|
1BPS1200RTST | 66.23" | 1 | €9,569.40 | |
 |
3BPS1600RBST | 66.23" | - | €189,514.13 | |
|
3BPS1200RBST | 66.23" | 3 | - | RFQ
|
|
3BPS1200RB | 66.23" | 3 | - | RFQ
|
|
3BPS1200RT | 66.23" | 3 | - | RFQ
|
