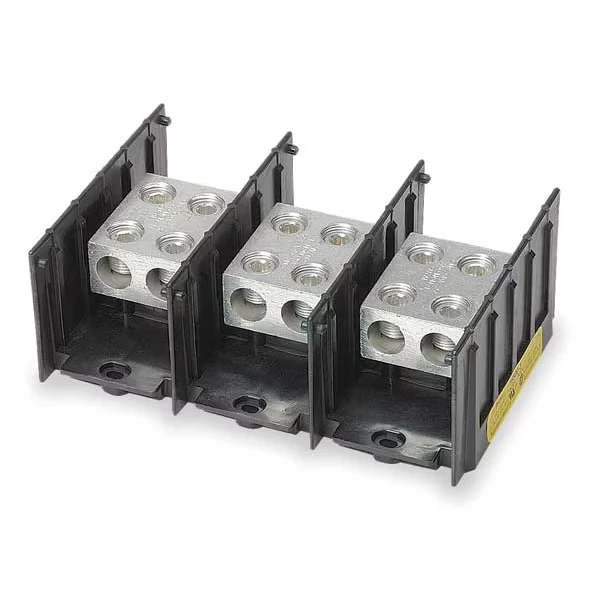

EATON 16504-3 Pwr Dist Block, 760A, 3P, 6AWG-500 MCM, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Body Material | Thermoplastic |
| Depth | 2.93" |
| For Conductor Material | Aluminum, Copper |
| For Line Copper Wire Size-max. | 500 kcmil |
| For Load Aluminum Wire Size-max. | 500 kcmil |
| For Max. Line Wire Size | 500 kcmil |
| For Max. Load Wire Size | 500 kcmil |
| Housing Color | Black |
| Length | 5 1/2" |
| Line Connections/pole | 2 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 2 |
| Load Side Connection Type | Lug |
| Max. Amps | 760A |
| Max. Amps-copper Conductor | 760A |
| Min. For Line Aluminum Wire Size | 6 AWG |
| Min. For Line Copper Wire Size | 6 AWG |
| Min. For Load Aluminum Wire Size | 6 AWG |
| Min. For Load Copper Wire Size | 6 AWG |
| No. Of Circuits | 3 |
| Overall Depth | 2 22/25" |
| Overall Length | 5.42" |
| Overall Width | 8.1" |
| Primary Connections/pole | 2 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 2 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 8 12/25" |
Shipping Info:
| Ship length (cm) | 13.97 |
| Ship width (cm) | 21.54 |
