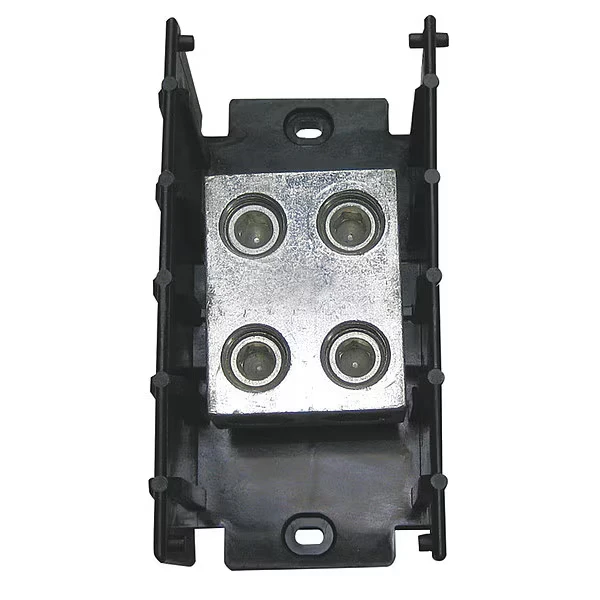

EATON 16500-2 Pwr Dist Block, 620A, 2P, 4AWG-350 MCM, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 2.93" |
| Design | Open |
| For Conductor Material | Aluminum, Copper |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| For Line Copper Wire Size - Maximum | 350 kcmil |
| For Line Copper Wire Size - Minimum | 6 AWG |
| For Load Aluminum Wire Size - Maximum | 350 kcmil |
| For Load Aluminum Wire Size - Minimum | 4 AWG |
| For Load Copper Wire Size - Min. | 6 AWG |
| For Maximum Line Wire Size | 350 kcmil |
| For Maximum Load Wire Size | 350 kcmil |
| Housing Color | Black |
| Length | 5 1/2" |
| Line Connections/pole | 2 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 2 |
| Load Side Connection Type | Lug |
| Material | Molded Thermoplastic |
| Max. Amps | 620A |
| Maximum Current | 620A |
| Maximum Current - Copper Conductor | 620A |
| Number Of Circuits | 2 |
| Overall Depth | 2.89" |
| Overall Length | 5.43" |
| Overall Width | 5.74" |
| Primary Connections/pole | 2 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 2 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 5.79" |
Shipping Info:
| Ship length (cm) | 13.97 |
| Ship width (cm) | 14.71 |
