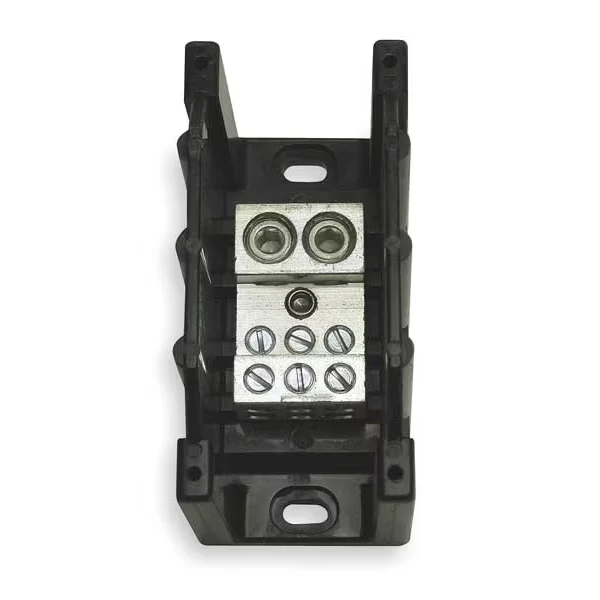

EATON 16325-1 Pwr Dist Block, 350A, 1P, 600VAC, 2P Primary
Request a Quote
Payment
Delivery
Product Specifications:
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 3 8/25" |
| Design | Open |
| For Conductor Material | Aluminum, Copper |
| For Load Aluminum Wire Size-max. | 4 AWG |
| For Max. Load Wire Size | 4 AWG |
| Housing Color | Black |
| Length | 4" |
| Line Connections/pole | 2 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 6 |
| Load Side Connection Type | Lug |
| Material | Molded Thermoplastic |
| Max. Amps | 350A |
| Max. Amps-copper Conductor | 350A |
| Min. For Line Aluminum Wire Size | 8 AWG |
| Min. For Line Copper Wire Size | 14 AWG |
| Min. For Load Aluminum Wire Size | 8 AWG |
| Min. For Load Copper Wire Size | 14 AWG |
| No. Of Circuits | 1 |
| Overall Depth | 3.19" |
| Overall Length | 3.94" |
| Overall Width | 1.97" |
| Primary Connections/pole | 2 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 6 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 1.98" |
Shipping Info:
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.03 |
