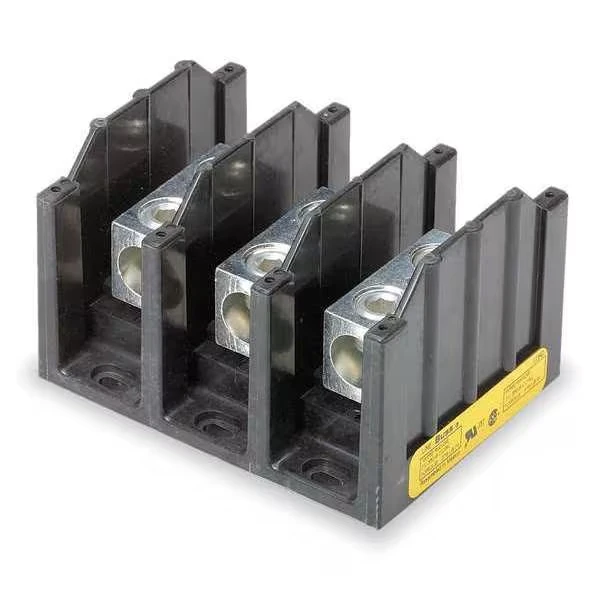

EATON 16303-3 Power Distr Block, Al/Cu, 600V AC/DC
Request a Quote
Payment
Delivery
Product Specifications:
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 3 8/25" |
| Design | Open |
| For Conductor Material | Aluminum, Copper |
| For Line Copper Wire Size-max. | 350 kcmil |
| For Load Aluminum Wire Size-max. | 250 kcmil |
| For Max. Line Wire Size | 250 kcmil |
| For Max. Load Wire Size | 350 kcmil |
| Housing Color | Black |
| Length | 4" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Material | Molded Thermoplastic |
| Max. Amps | 310A |
| Max. Amps-copper Conductor | 310A |
| Min. For Line Aluminum Wire Size | 6 AWG |
| Min. For Line Copper Wire Size | 6 AWG |
| Min. For Load Aluminum Wire Size | 6 AWG |
| Min. For Load Copper Wire Size | 6 AWG |
| No. Of Circuits | 3 |
| Overall Depth | 3.22" |
| Overall Length | 3.98" |
| Overall Width | 5" |
| Primary Connections/pole | 1 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 1 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 5.21" |
Shipping Info:
| Ship length (cm) | 10.16 |
| Ship width (cm) | 13.23 |
