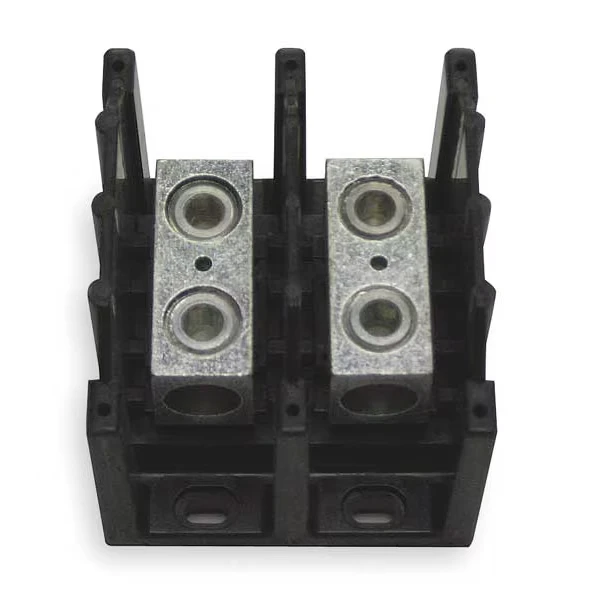

EATON 16303-2 Pwr Dist Block, 310A, 2P, 1P Secondary, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 3 8/25" |
| Design | Open |
| For Conductor Material | Aluminum, Copper |
| For Max. Load Wire Size | 350 kcmil |
| Housing Color | Black |
| Length | 4" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Material | Molded Thermoplastic |
| Max. Amps | 310A |
| Min. For Line Aluminum Wire Size | 6 AWG |
| Min. For Line Copper Wire Size | 6 AWG |
| Min. For Load Copper Wire Size | 6 AWG |
| No. Of Circuits | 2 |
| Overall Depth | 5" |
| Primary Connections/pole | 1 |
| Secondary Connection/pole | 1 |
Shipping Info:
| Ship length (cm) | 10.16 |
| Ship width (cm) | 9.14 |
