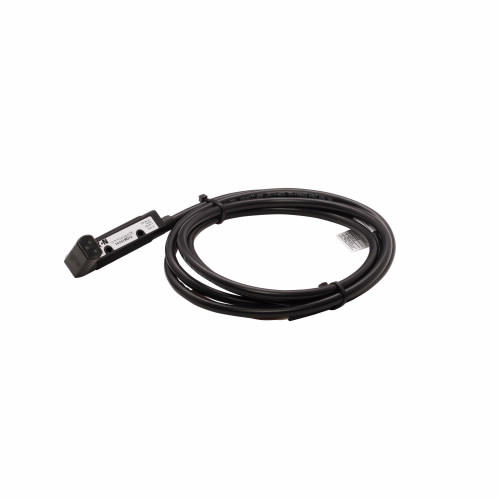

EATON 14151RD14 Photoelectric Sensor, Dark, 6.6 Feet, 80 mA Ac/100 mA Dc At 20-132V, 20-132 VAC 50/60 Hz
Get it by Wednesday, Dec 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 80 MA AC/100 MA DC at 20-132V |
| Cord Length | 79.2 ft. |
| Enclosure Material | Polyurethane |
| Height | 0.71" |
| Input Voltage | 20-132V AC @ 50/60 Hz, 15-30V DC |
| Led Indicator | Output On |
| Length | 2 3/4" |
| Max. Ac Amps | 80 mA |
| Max. Operating Temp. | 131°F |
| Maximum Dc Current | 100 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| Operating Mode | Dark |
| Operating Temperature - Min | -13°F |
| Product Name | Eaton OEM Prism 18mm Tubular Photoelectric Sensor |
| Protection Type | Protected For Loads < 32 V AC Or 2 V DC |
| Sensor Type | Polarized Retroreflective |
| Type | Photoelectric Sensor |
| Warranty | 3 yrs. |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
