EATON 14102R6517 Photoelectric Sensor, 3/4-Wire, 6 Feet, 250 mA Npn At 10-30 VDC, 10-30 VDC
Item: BJ6CFLModel: 14102R6517Cross Ref: 2XCH7
7 In Stock
Ships within 2 days via
5.00% off
€385.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Polyurethane |
| Cable Sheath Material | PVC |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Cord Length | 72 ft. |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 18 mm |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Infrared |
| Enclosure Material | Polyurethane |
| Features | Auto Reset Short Circuit |
| Height | 0.71" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output On |
| Length | 3" |
| Max. Amps | 100 mA, 250 mA |
| Max. Load Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 4.5m |
| Min. Operating Temp. | -40°F |
| Min. Sensing Distance | 30 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Wires | 4 |
| Nominal Sensor Dia. | M18 Threaded |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Dia. | 18 mm |
| Overall Height | 18 mm |
| Overall Width | 12 mm |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Response Time | 1 ms |
| Sensing Method | Retroreflective |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Retroreflective |
| Series | Comet Series |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 500 Hz |
| Type | Photoelectric Sensor |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Model | Height | Input Voltage | Max. Amps | Max. Load Amps | Supply Voltage | Electrical Connection | Overall Height | Dc Supply Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

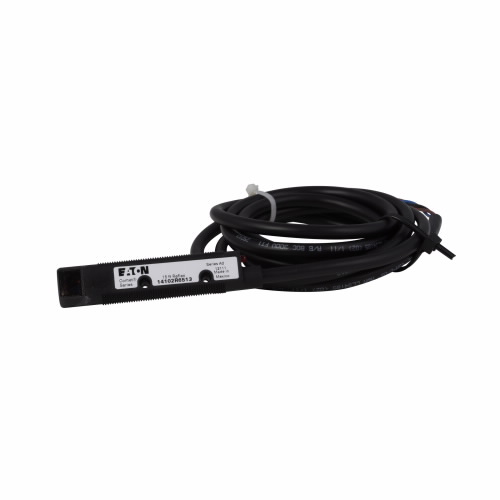

| 14102R6513 | 0.71" | 20-264V AC @ 50/60 Hz, 15-30V DC (NPN) | 300 mA | 300 mA | 20-264V AC/15-30V DC | Bare Wire | 18 mm | 15-30V DC | €492.62 | |

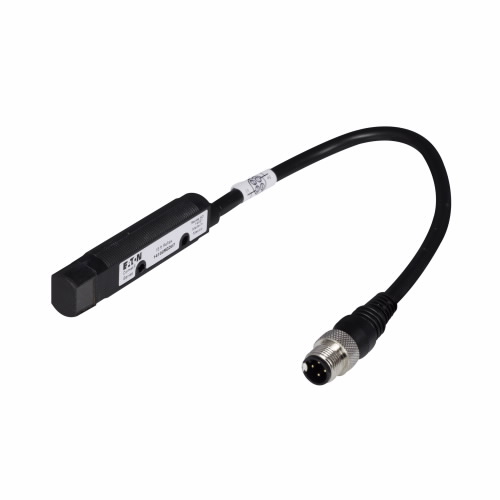

| 14102RQD07 | 44.45 mm | 10-30V DC | 100 mA, 250 mA | 250 mA | 10-30V DC | M12 | 44 mm | 10-30V DC | €527.23 | |
| 14102RQD03 | - | - | 300 mA | 300 mA | 20-264V AC/15-30V DC | Dual Key Micro Connector | 44 mm | 15-30V DC | €607.28 |
