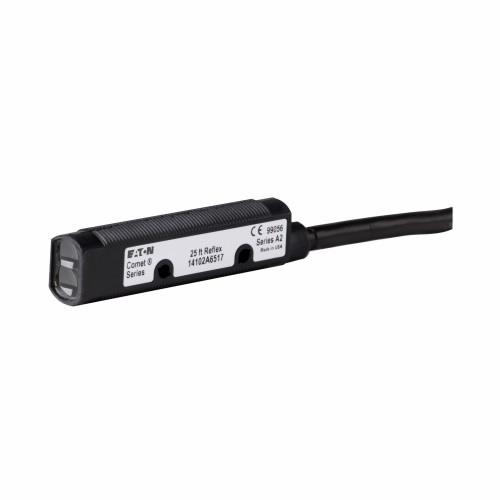

EATON 14102A6517 Cylindrical Photoelectric Sensor, 10 to 30 VDC, NPN/PNP, 2m Cable, Retroreflective
Item: BJ6CEVModel: 14102A6517Cross Ref: 2XCH3
7 In Stock
Ships within 2 days via
10.00% off
€318.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sensor |
| Adjustment Type | Manual Adjustment |
| Ambient Operating Temperature | -40°C |
| Ambient Operating Temperature - Max | 70°C |
| Body Material | Polyurethane |
| Cable Sheath Material | PVC |
| Cable Size | 2m |
| Connection Type | Cable |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Cord Length | 72 ft. |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 51 mm |
| Dc Supply Voltage Rating | 10-30V DC |
| Diameter Sensor | 18 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Enclosure Type | Cylinder, Screw Thread |
| Explosion Safety Category For Dust | None |
| Explosion Safety Category For Gas | None |
| Features | Auto Reset Short Circuit |
| Functions | For Combination With Reflector Protection Against Polarity Reversal Reflected-Light Beam Short-Circuit Protection |
| Height | 50.8 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Interface Type | Other |
| Ip Rating | IP69K |
| Laser Protection Class | None |
| Led Indicator | Output On Status Indication Of Switching State, Red LED |
| Length | 158.75 mm |
| Light Type | Polarity Free Red Light |
| Load Amps | Max. 250 MA (Ie, NPN, 120 > 50aaC) Max. 100 MA (Ie, PNP) |
| Load Current - Maximum | 250 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 100 mA, 250 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Wires | 4 |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Cables | 4 |
| Number Of Contact Energized Outputs With Signalling Function | 0 |
| Number Of Outputs (protected Contact Energized) | 0 |
| Number Of Outputs (protected Semiconductor) | 0 |
| Operating Mode | Switching Principle, Adjustable Bright/dark Switching |
| Operating Temperature - Min | -40°F |
| Operational Current (ib) In The Switched State At 24 V Dc | 30A |
| Optical Surface Material | Plastic |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Output Current (ma) - Max | 100 mA |
| Overall Diameter | 18 mm |
| Overall Height | 51 mm |
| Overall Width | 133 mm |
| Product Name | Eaton MoelleraA Series E58 Diffuse Reflective Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Rated Control Supply Voltage (us) At Ac, 50 Hz - Max | 0V |
| Rated Control Supply Voltage (us) At Ac, 50 Hz - Min | 0V |
| Rated Control Supply Voltage (us) At Ac, 60 Hz - Max | 0V |
| Rated Control Supply Voltage (us) At Ac, 60 Hz - Min | 0V |
| Rated Control Supply Voltage (us) At Dc - Max | 30V |
| Rated Control Supply Voltage (us) At Dc - Min | 10V |
| Rated Switching Distance (sn) | 7600 mm |
| Response Time | 1 ms |
| Safety Type (iec 61496-1) | 1 |
| Sensing Distance - Maximum | 7.6m |
| Sensing Distance - Minimum | 30 mm |
| Sensing Method | Retroreflective |
| Sensing Mode | Light-/Dark Switching |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Straight |
| Sensor Length | 66 mm |
| Sensor Material | Insulated Material |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Retroreflective |
| Series | E58 Series |
| Shock Resistance | 100 G, Mechanical, Shock Duration 3 Ms |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switch Function Type | Programmable/Configurable |
| Switching Distance - Max | 0 mm |
| Switching Frequency | 500 Hz |
| Switching Output Type | Pnp |
| Switching Voltage Of Ossd At State High | 0V |
| Transmission Range Of The Safety Field | 0m |
| Type | Optical Sensors |
| Voltage Rating | 30V |
| Warranty | 3 yrs. |
| Width | 133.35 mm |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
Product Variants
| Model | Response Time | Sensing Method | Ip Rating | Body Material | Cable Size | Price | |
|---|---|---|---|---|---|---|---|

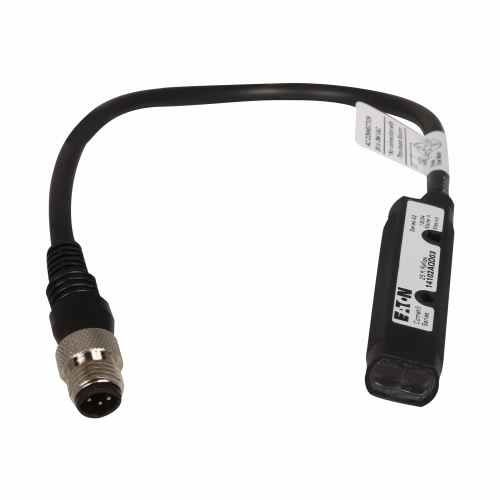

| 14102AQD07 | 1 ms | Retroreflective | IP69K | Polyurethane | - | €411.02 | |
| 14102A6513 | 10 ms | Retroreflective | IP69K | Polyurethane | - | €427.59 | |
| 14102AQD03 | 10 ms | Retroreflective | IP69K | Polyurethane | - | €503.82 |
