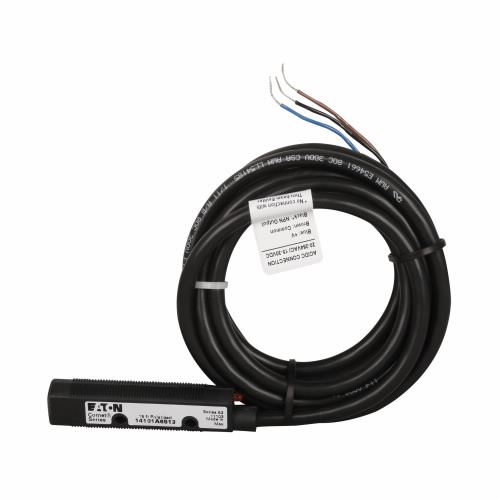

EATON 14101A6513 Cylindrical Photoelectric Sensor, 20 to 264 VAC/15 to 30 VDC, 2m Cable, Retroreflective
Item: BJ6CDYModel: 14101A6513Cross Ref: 2XCG3
7 In Stock
Ships within 2 days via
5.00% off
€479.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Ac Supply Voltage | 20-264V AC |
| Body Material | Polyurethane |
| Cable Sheath Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 300 MA AC/DC at 20-264V AC/15-30V DC |
| Cord Length | 79.2 ft. |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 67 mm |
| Dc Supply Voltage Rating | 15-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Structural Polyurethane Foam |
| Features | Latching Short Circuit |
| Height | 2 16/25" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 20-264V AC/15-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Amps | 300 mA |
| Max. Load Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 4.5m |
| Min. Object Size | 76.2 mm Dia. |
| Min. Operating Temp. | -40°F |
| Min. Sensing Distance | 30 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nominal Sensor Dia. | M18 Threaded |
| Notes | Ranges Based On A 3-Inch Diameter Retroreflector (Not Included). For Complete System, Order Sensor And Retroreflector. Polarized Reflex Sensors May Not Operate With Retroreflective Tape. Test Selected Tape Prior To Installation. |
| Operating Mode | Polarized Retroreflective |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Dia. | 18 mm |
| Overall Height | 67 mm |
| Overall Width | 18 mm |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Latching Short Circuit |
| Response Time | 10 ms |
| Sensing Method | Retroreflective |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Straight |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Polarized Retroreflective |
| Series | Comet Series |
| Supply Voltage | 20-264V AC/15-30V DC |
| Supply Voltage Type | Ac, Dc |
| Switch Type | Photoelectric |
| Switching Frequency | 500 Hz |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 6.71 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Model | Height | Input Voltage | Enclosure Material | Max. Amps | Max. Load Amps | Supply Voltage | Electrical Connection | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

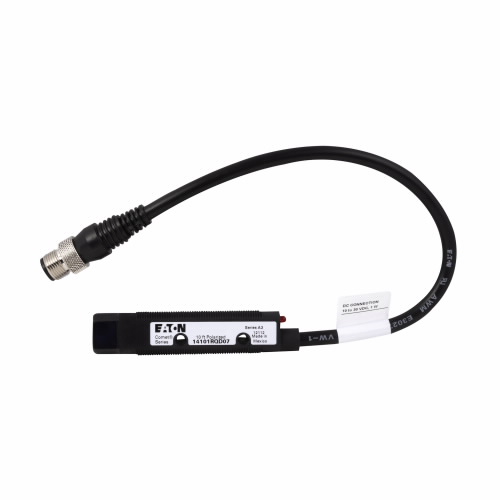

| 14101RQD07 | 0.71" | 10-30V DC | Polyurethane | 100 mA, 250 mA | 250 mA | 10-30V DC | M12 | 18 mm | €484.00 | |
| 14101R6513 | 3" | 20-264V AC/15-30V DC | Structural Polyurethane Foam | 300 mA | 300 mA | 20-264V AC/15-30V DC | Bare Wire | 76 mm | €492.96 | |
| 14101RQD03 | 0.71" | 20-264V AC @ 50/60 Hz, 15-30V DC (NPN) | Polyurethane | 300 mA | 300 mA | 20-264V AC/15-30V DC | Dual Key Micro Connector | 18 mm | €628.65 | |
| 14101R6517 | 0.71" | 10-30V DC | Polyurethane | 100 mA, 250 mA | 250 mA | 10-30V DC | Bare Wire | 18 mm | €403.88 |
