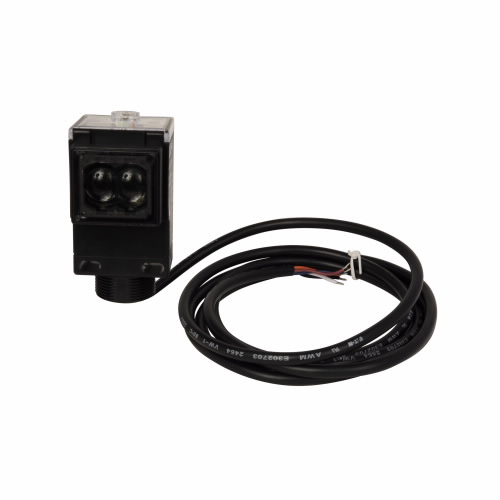

EATON 1350E-6514 Photoelectric Sensor, Distance 5 Feet, 3A At 240 VAC, 12-240 VDC 24-240 VAC
Get it by Thursday, Aug 27
€221.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | SPDT Form C Relay |
| Contact Rating | 3A at 240V AC |
| Enclosure Material | Fiberglass Reinforced Plastic |
| Height | 2.1" |
| Input Voltage | 12-240V AC/24-240V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Green Power On, Yellow Marginal Gain, Red |
| Length | 1.91" |
| Max. Amps | 3A |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -13°F |
| Operating Mode | Diffuse Reflective |
| Product Name | Eaton Enhanced 50 Photoelectric Sensor |
| Sensor Type | Diffuse Reflective |
| Switch Type | Photoelectric |
| Width | 1.81" |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 4.85 |
| Ship width (cm) | 4.6 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Contact Configuration | Contact Rating | Max. Amps | Cord Length | Enclosure Material | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1350E-6503 | 4 4/25" | 12-240V AC/24-240V DC | Isolated Solid State Relay | 300 MA at 240V AC/V DC | 300 mA | - | Fiberglass Reinforced Plastic | -13°F | €618.67 | |
 |
1350E-6507 | 4 4/25" | 10-40V DC | NPN And PNP Open Collector | 250 MA at 40V DC | 250 mA | - | Fiberglass Reinforced Plastic | -13°F | €382.69 | |
 |
1350E-6504 | 4 4/25" | 12-240V AC/24-240V DC | SPDT Form C Relay | 3A at 240V AC | 3A | - | Fiberglass Reinforced Plastic | -13°F | €402.53 | |
|
1350E-6533 | 3.46" | 12-240V AC/24-240V DC | Isolated Solid State Relay | 300 MA at 240V AC/V DC | 300 mA | 6 ft. | Fiberglass Reinforced Plastic | -13°F | €422.37 | |
|
1350E-6513 | 3.46" | 12-240V AC/24-240V DC | Isolated Solid State Relay | 300 MA at 240V AC/V DC | 300 mA | 79.2 ft. | Fiberglass Reinforced Plastic | -13°F | €221.11 | |
|
1350E-6543 | 4.01" | 12-240V AC/24-240V DC | Isolated Solid State Relay | 300 MA at 240V AC/V DC | 300 mA | - | Fiberglass Reinforced Plastic | -13°F | €422.37 | |
 |
1350E-6537 | 1.81" | 10-40V DC | NPN/PNP Open Collector | 250 MA at 10-40V DC | - | - | Fiberglass Reinforced Plastic | -13°F | €382.69 |
