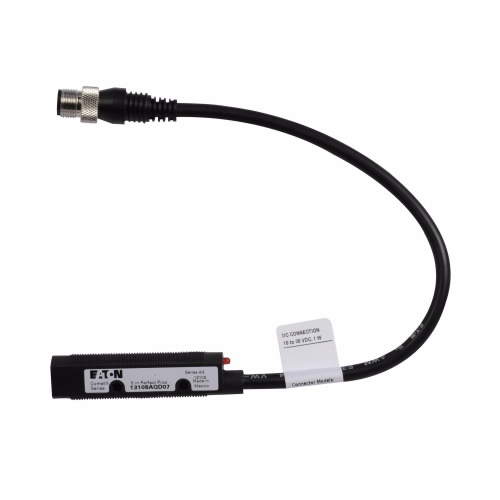

EATON 13108AQD07 Photoelectric Sensor, 10-30VDC, Insulated Material
Get it by Monday, Dec 22
€484.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Adjustment Type | Other |
| Ambient Operating Temperature | -40°C |
| Ambient Operating Temperature - Max | 70°C |
| Cable Sheath Material | Other |
| Connection Type | Plug In |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Diameter Sensor | 18 mm |
| Enclosure Type | Cylinder, Screw thread |
| Explosion Safety Category For Dust | None |
| Explosion Safety Category For Gas | None |
| Features | Straight Beam |
| Fitted With | Background Suppression (Perfect Prox) |
| Functions | Short-Circuit Protection Reflected-Light Beam Protection Against Polarity Reversal |
| Height | 50.8 mm |
| Input Voltage | 10-30V DC |
| Interface Type | Other |
| Ip Rating | IP69K, IP67 |
| Laser Protection Class | None |
| Led Indicator | Output On Status Indication Of Switching State, Red LED |
| Length | 158.75 mm |
| Light Type | Infrared Light |
| Load Amps | Max. 100 MA (Ie, PNP) Max. 250 MA (Ie, NPN, 120 > 50aaC) |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 100 mA, 250 mA |
| Min. Adjustment Range | 0 mm |
| Min. Operating Distance | 0 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 4 |
| Number Of Contact Energized Outputs With Signalling Function | 0 |
| Number Of Outputs (protected Contact Energized) | 0 |
| Number Of Outputs (protected Semiconductor) | 0 |
| Operating Mode | Switching Principle, Adjustable Bright/dark Switching |
| Operating Temperature - Min | -40°F |
| Operation Agent-safety Class | Safety Class 2 |
| Operational Current (ib) In The Switched State At 24 V Dc | 30A |
| Optical Surface Material | Plastic |
| Output Current (ma) - Max | 250 mA |
| Product Name | Eaton MoelleraA Series E58 Diffuse Reflective Sensor |
| Protection Type | Auto Reset Short Circuit |
| Rated Control Supply Voltage (us) At Ac, 50 Hz - Max | 0V |
| Rated Control Supply Voltage (us) At Ac, 50 Hz - Min | 0V |
| Rated Control Supply Voltage (us) At Ac, 60 Hz - Max | 0V |
| Rated Control Supply Voltage (us) At Ac, 60 Hz - Min | 0V |
| Rated Control Supply Voltage (us) At Dc - Max | 30V |
| Rated Control Supply Voltage (us) At Dc - Min | 10V |
| Rated Switching Distance (sn) | 150 mm |
| Response Time | 1 ms |
| Safety Type (iec 61496-1) | 1 |
| Sensing Mode | Light-/Dark Switching |
| Sensor Length | 66 mm |
| Sensor Material | Insulated Material |
| Sensor Type | Back Ground Suppression |
| Shock Resistance | 100 G, Mechanical, Shock Duration 3 Ms |
| Switch Function Type | Programmable/Configurable |
| Switching Distance - Max | 150 mm |
| Switching Frequency | 500 Hz |
| Switching Output Type | Npn |
| Switching Voltage Of Ossd At State High | 30V |
| Transmission Range Of The Safety Field | 0m |
| Triangulation | Background Fade Out |
| Type | Optical Sensors |
| Voltage Rating | 30V |
| Warranty | 3 yrs. |
| Width | 133.35 mm |
| Wire Size | 22 AWG |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
