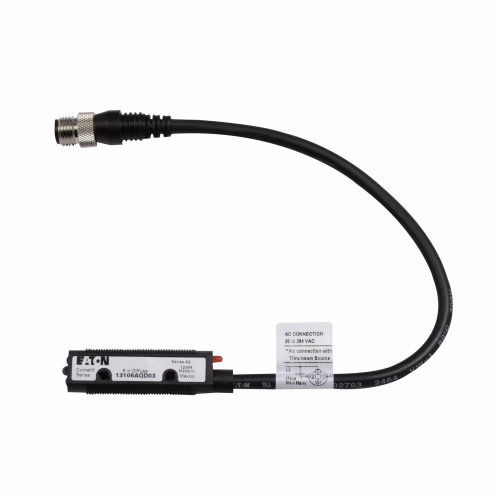

EATON 13106AQD03 Photoelectric Sensor, Distance 8 Inch, 300 mA Ac/Dc At 20-264VAC/15-30 VDC
Get it by Tuesday, Sep 1
€417.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 4-pin Dual Key Micro Connector |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 300 MA AC/DC at 20-264V AC/15-30V DC |
| Cord Length | 8" |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Structural Polyurethane Foam |
| Height | 2 1/5" |
| Input Voltage | 20-264V AC/15-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Operating Mode | Diffuse Reflective |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Protection Type | Latching Short Circuit |
| Sensor Type | Diffuse Reflective |
| Switch Type | Photoelectric |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Material | Ip Rating | Min. Operating Temp. | Led Indicator | Sensor Type | Cord Length | Max. Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11100A6513 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | 79.2 ft. | - | €189.19 | |
 |
11100AQD03 | 2 1/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 8" | - | €267.76 | |
|
11100AQD07 | 1 4/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 8" | - | €409.08 | |
 |
11100R6513 | 0.71" | Polyurethane | IP69K | -4°F | - | Through Beam | 79.2 ft. | - | €371.88 | |
|
11100RQD03 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | - | - | €223.61 | |
|
11100RS2145 | 2 1/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 48 ft. | - | €239.11 | |
 |
11100A6517 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | 79.2 ft. | - | €169.43 |
