EATON 13104RS5020 Cylindrical Photoelectric Sensor, 10 to 30 VDC/PNP, 2m Cable, Diffuse, Solid Polyurethane
Item: BJ6BQUModel: 13104RS5020Cross Ref: 2XCF5
7 In Stock
Ships within 2 days via
5.00% off
€436.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Polyurethane |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Cord Length | 79.2 ft. |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Structural Polyurethane Foam |
| Features | Auto Reset Short Circuit |
| Height | 3.02" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Output Status, Red |
| Length | 3/5" |
| Max. Amps | 100 mA, 250 mA |
| Max. Load Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 100 mm |
| Min. Operating Temp. | -40°F |
| Min. Sensing Distance | 13 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | Sensor Will Detect A 90% Reflectance Card at The Sensing Range, Sensor Will Ignore A 90% Reflectance Card at The Cutoff Range |
| Operating Mode | Background Suppression |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 15 mm |
| Overall Dia. | 18 mm |
| Overall Height | 77 mm |
| Overall Width | 18 mm |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Response Time | 1 ms |
| Sensing Method | Diffuse |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 18 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Back Ground Suppression |
| Series | Comet Series |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switch Type | Photoelectric |
| Switching Frequency | 250 Hz |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 7.67 |
| Ship length (cm) | 1.52 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Enclosure Material | Max. Amps | Cord Length | Max. Load Amps | Supply Voltage | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
13104R6513 | 3.02" | 20-264V AC/15-30V DC | Structural Polyurethane Foam | 300 mA | 79.2 ft. | 300 mA | 20-264V AC/15-30V DC | Bare Wire | €563.31 | |
 |

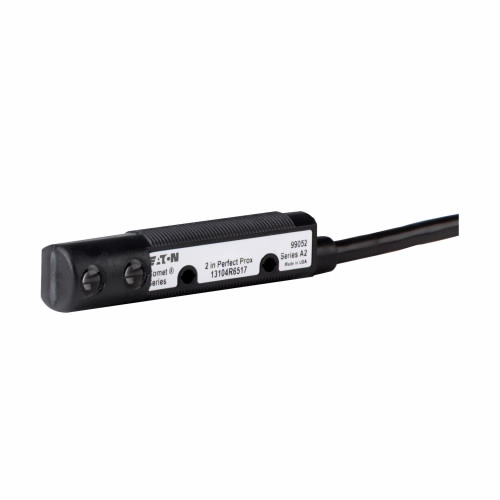

13104R6517 | 0.71" | 10-30V DC | Polyurethane | 100 mA, 250 mA | 79.2 ft. | 250 mA | 10-30V DC | Bare Wire | €487.83 | |
 |

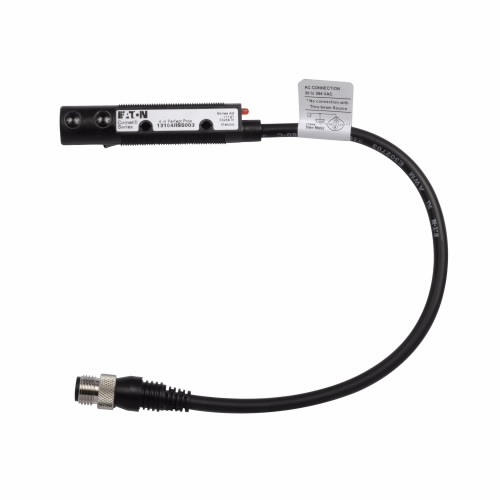

13104RS5003 | 3.02" | 20-264V AC/15-30V DC | Structural Polyurethane Foam | 300 mA | 8" | 300 mA | 20-264V AC/15-30V DC | Dual Key Micro Connector | €611.35 |
