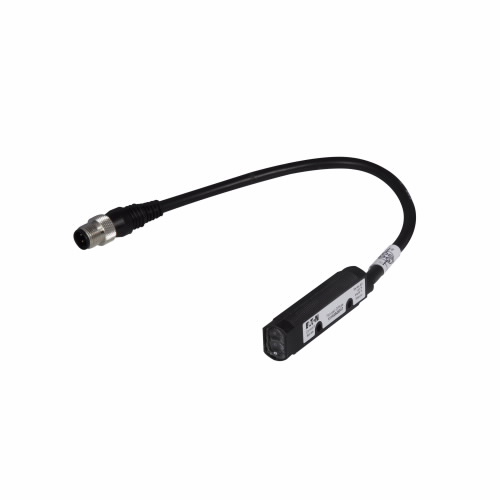

EATON 13102AQD07 Photoelectric Sensor, 1.6 Inch Focused Range, 100 mA Pnp, 250 mA Npn At 10-30 VDC
Get it by Tuesday, Aug 25
€764.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | M12 |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Enclosure Material | Polyurethane |
| Height | 0.71" |
| Input Voltage | 10-30V DC |
| Ip Rating | IP69K |
| Led Indicator | Output On |
| Length | 2 3/5" |
| Max. Amps | 100 mA, 250 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 4 |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Sensor Type | Diffuse Reflective |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Material | Ip Rating | Min. Operating Temp. | Led Indicator | Sensor Type | Cord Length | Max. Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11100A6513 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | 79.2 ft. | - | €189.19 | |
 |
11100AQD03 | 2 1/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 8" | - | €267.76 | |
|
11100AQD07 | 1 4/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 8" | - | €409.08 | |
 |
11100R6513 | 0.71" | Polyurethane | IP69K | -4°F | - | Through Beam | 79.2 ft. | - | €371.88 | |
|
11100RQD03 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | - | - | €223.61 | |
|
11100RS2145 | 2 1/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 48 ft. | - | €239.11 | |
 |
11100A6517 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | 79.2 ft. | - | €169.43 |
