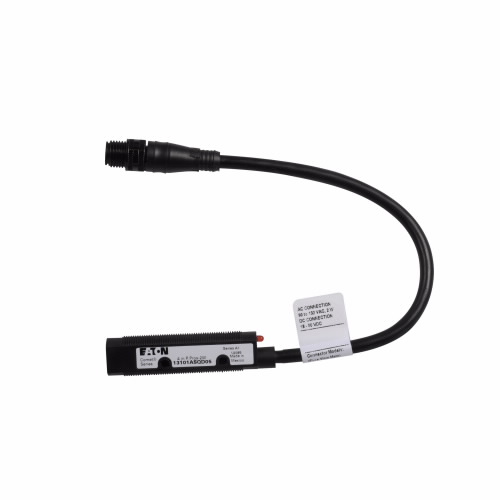

EATON 13101ASQD05 Photoelectric Sensor, 4 Inch Range, 300 Ma, 2-Wire Ac/Dc, 90-132 VAC 50/60 Hz, 18-50 VDC
Get it by Monday, Dec 22
€919.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | Dual Key Micro |
| Contact Configuration | 2-wire AC/DC |
| Contact Rating | 300 mA |
| Enclosure Material | Polyurethane |
| Height | 0.71" |
| Input Voltage | 90-132V AC @ 50/60 Hz, 18-50V DC |
| Ip Rating | IP69K |
| Led Indicator | Output On |
| Length | 2 3/5" |
| Max. Ac Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 300 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 3 |
| Operating Temperature - Min | -40°F |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Protection Type | Auto Reset |
| Sensor Type | Back Ground Suppression |
| Warranty | 3 yrs. |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Operating Mode | Response Time | Sensing Method | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|
 |
11100A6513 | IP69K | - | - | - | - | €189.19 | |
 |
11100AQD03 | IP68, IP69K | Thru Beam | - | - | - | €267.76 | |
|
11100AQD07 | IP68, IP69K | Thru Beam | - | - | - | €409.08 | |
 |
11100R6513 | IP69K | - | - | - | - | €371.88 | |
|
11100RQD03 | IP69K | - | - | - | - | €223.61 | |
|
11100RS2145 | IP68, IP69K | Thru Beam | - | - | - | €239.11 | |
 |
11100A6517 | IP69K | - | - | - | - | €169.43 |
