EATON 13100RQD07 Cylindrical Photoelectric Sensor, 10 to 30 VDC/PNP, 4-Pin Micro Connector, Diffuse
Item: BJ6BNBModel: 13100RQD07Cross Ref: 2XCD7
7 In Stock
Ships within 2 days via
5.00% off
€432.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sensor |
| Adjustment Type | Manual Adjustment |
| Ambient Operating Temp. | -40°C |
| Body Material | Polyurethane |
| Cable Sheath Material | PVC |
| Connection Type | Plug In |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Cord Length | 8" |
| Dc Supply Voltage Rating | 10-30V DC |
| Dia. Sensor | 18 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Infrared |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Type | Cylinder, Screw thread |
| Explosion Safety Category For Dust | None |
| Explosion Safety Category For Gas | None |
| Features | Auto Reset Short Circuit |
| Functions | Reflected-Light Beam Short-Circuit Protection Protection Against Polarity Reversal |
| Height | 44.45 mm |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP68, IP69K |
| Laser Protection Class | None |
| Led Indicator | Output Status, Red Status Indication Of Switching State, Red LED |
| Length | 152.4 mm |
| Light Type | Infrared Light |
| Load Amps | Max. 250 MA (Ie, NPN, 120 > 50aaC) Max. 100 MA (Ie, PNP) |
| Max. Ambient Operating Temp. | 70°C |
| Max. Amps | 100 mA, 250 mA |
| Max. Load Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Max. Output Amps | 250 mA |
| Max. Rated Control Supply Voltage (us) @ Ac 50 Hz | 0V |
| Max. Rated Control Supply Voltage (us) @ Ac 60 Hz | 0V |
| Max. Rated Control Supply Voltage (us) @ Dc | 30V |
| Max. Sensing Distance | 610 mm |
| Max. Switching Distance | 610 mm |
| Min. Operating Distance | 0 mm |
| Min. Operating Temp. | -40°F |
| Min. Sensing Distance | 3 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Contact Energized Outputs With Signalling Function | 0 |
| No. Of Outputs (protected Contact Energized) | 0 |
| No. Of Outputs (protected Semiconductor) | 0 |
| No. Of Outputs (semiconductor With Signaling Function) | 2 |
| No. Of Pins | 4 |
| Operating Mode | Diffuse Reflective Switching Principle, Adjustable Bright/dark Switching |
| Operation Agent-safety Class | Safety Class 2 |
| Operational Amps (ib) In The Switched State @ 24 V Dc | 30A |
| Optical Surface Material | Plastic |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 152 mm |
| Overall Dia. | 18 mm |
| Overall Height | 44 mm |
| Overall Width | 152 mm |
| Product Name | Eaton MoelleraA Series E58 Diffuse Reflective Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Rated Control Supply Voltage (us) @ Ac, 50 Hz-min | 0V |
| Rated Control Supply Voltage (us) @ Ac, 60 Hz-min | 0V |
| Rated Control Supply Voltage (us) @ Dc-min | 0V |
| Rated Switching Distance | 610 mm |
| Response Time | 1 ms |
| Sensing Method | Diffuse |
| Sensing Mode | Light-/Dark Switching |
| Sensor Body Style | Cylindrical |
| Sensor Face Orientation | Right Angle |
| Sensor Length | 65 mm |
| Sensor Material | Insulated Material |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Diffuse Reflective |
| Series | E58 Series |
| Shock Resistance | 100 G, Mechanical, Shock Duration 3 Ms |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switch Function Type | Programmable/Configurable |
| Switch Type | Photoelectric |
| Switching Frequency | 500 Hz |
| Switching Output Type | PNP/NPN |
| Switching Voltage Of Ossd @ State High | 0V |
| Transmission Range Of The Safety Field | 0m |
| Type | Optical Sensors |
| Voltage | 30V |
| Width | 152.4 mm |
| Wire Size | 22 AWG |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Max. Amps | Max. Load Amps | Supply Voltage | Electrical Connection | Overall Height | Dc Supply Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13100R6517 | 1 3/4" | 10-30V DC | 100 mA, 250 mA | 250 mA | 10-30V DC | Bare Wire | 44 mm | 10-30V DC | €375.21 | |
 |

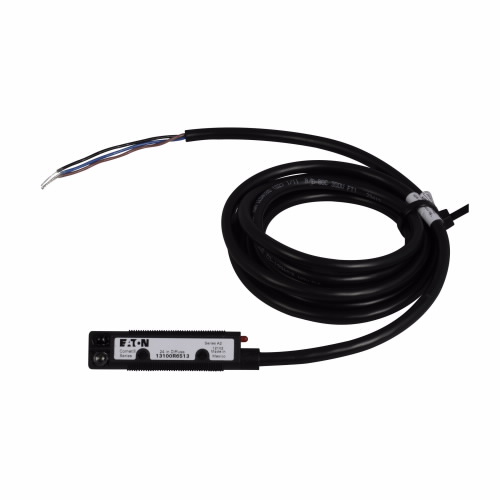

13100R6513 | 0.71" | 20-264V AC @ 50/60 Hz, 15-30V DC (NPN) | 300 mA | 300 mA | 20-264V AC/15-30V DC | Bare Wire | 18 mm | 15-30V DC | €464.58 | |
 |

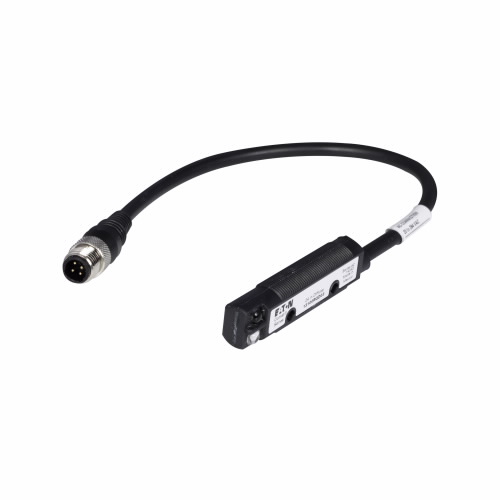

13100RQD03 | 0.71" | 20-264V AC @ 50/60 Hz, 15-30V DC (NPN) | 300 mA | 300 mA | 20-264V AC/15-30V DC | Dual Key Micro Connector | 18 mm | 15-30V DC | €506.88 |
