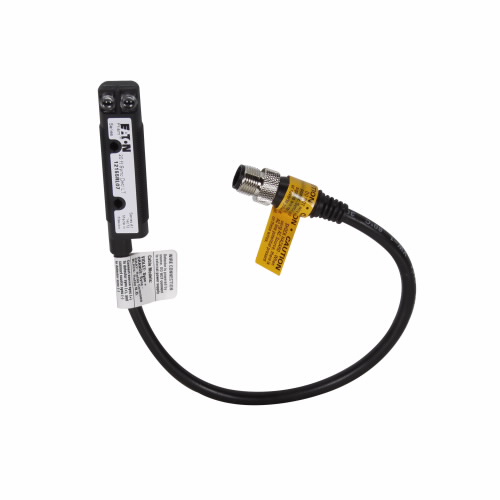

EATON 12155RL07 Photoelectric Sensor, Distance 8 Inch, 20 Feet, 80 mA At 132 VAC/110 mA At 132VDC
Get it by Monday, Dec 22
€226.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 4-pin M12 Connector |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 80 MA at 132V AC / 110 MA at 132V DC |
| Cord Length | 8" |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Structural Polyurethane Foam |
| Height | 2.55" |
| Input Voltage | 10-30V DC |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Ac Amps | 80 mA |
| Max. Operating Temp. | 131°F |
| Maximum Dc Current | 110 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | Synchronous Design Requires Source And Detector To Be Wired To Each Other |
| Operating Mode | Thru Beam |
| Operating Temperature - Min | -13°F |
| Product Name | Eaton OEM Prism 18mm Tubular Photoelectric Sensor |
| Protection Type | Current Limited For Loads Less Than 32 V AC/DC |
| Sensor Type | Through Beam |
| Switch Type | Photoelectric |
| Warranty | 3 yrs. |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 6.48 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
