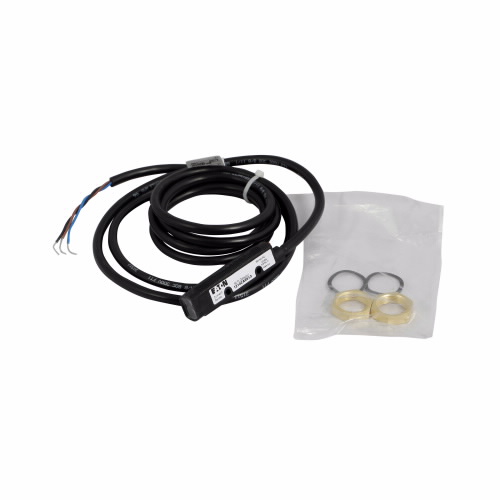

EATON 12102A6517 Cylindrical Photoelectric Sensor Receiver, 10 to 30 VDC, NPN/PNP, 2m Cable
Item: BJ6AUQModel: 12102A6517Cross Ref: 2XCA9
7 In Stock
Ships within 2 days via
5.00% off
€423.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Polyurethane |
| Cable Sheath Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA PNP, 250 MA NPN at 10-30V DC |
| Cord Length | 79.2 ft. |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Structural Polyurethane Foam |
| Features | Auto Reset Short Circuit |
| Height | 1 3/4" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Amps | 100 mA, 250 mA |
| Max. Load Amps | 250 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 24m |
| Min. Object Size | 6.35 mm Dia. |
| Min. Operating Temp. | -40°F |
| Min. Sensing Distance | 30 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nominal Sensor Dia. | M18 Threaded |
| Notes | For Complete System, Order 1 Source And 1 Detector. 11102 Sources Must Be Used With 12102 Detectors. The Effective Beam (Minimum Object Size That Can Be Detected) Is 0.25 Inch (6.5 Mm) Diameter. |
| Operating Mode | Thru Beam |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 12 mm |
| Overall Dia. | 18 mm |
| Overall Height | 44 mm |
| Overall Width | 18 mm |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Response Time | 3.5 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 18 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Through Beam |
| Series | Comet Series |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switch Type | Photoelectric |
| Switching Frequency | 140 Hz |
| Through Beam Sensor Component | Photoelectric Sensor Receiver |
| Width | 0.71" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 1.19 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Material | Ip Rating | Min. Operating Temp. | Led Indicator | Sensor Type | Cord Length | Max. Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11100A6513 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | 79.2 ft. | - | €189.19 | |
 |
11100AQD03 | 2 1/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 8" | - | €267.76 | |
|
11100AQD07 | 1 4/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 8" | - | €409.08 | |
 |
11100R6513 | 0.71" | Polyurethane | IP69K | -4°F | - | Through Beam | 79.2 ft. | - | €371.88 | |
|
11100RQD03 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | - | - | €223.61 | |
|
11100RS2145 | 2 1/5" | Structural Polyurethane Foam | IP68, IP69K | -4°F | Power On, Red | Through Beam | 48 ft. | - | €239.11 | |
 |
11100A6517 | 0.71" | Polyurethane | IP69K | -4°F | Power | Through Beam | 79.2 ft. | - | €169.43 |
