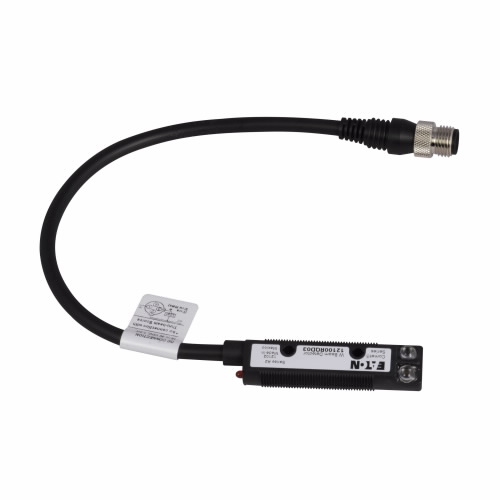

EATON 12100RQD03 Photoelectric Sensor, Through Beam, 300 mA Ac/Dc At 20-264 VAC/15-30 VDC
Get it by Tuesday, Feb 24
€378.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | Dual Key Micro |
| Contact Configuration | AC, L1 Switched DC, NPN Open Collector |
| Contact Rating | 300 MA AC/DC at 20-264V AC/15-30V DC |
| Enclosure Material | Polyurethane |
| Height | 0.71" |
| Ip Rating | IP69K |
| Led Indicator | Output On |
| Length | 2.55" |
| Max. Ac Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 300 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 4 |
| Operating Temperature - Min | -4°F |
| Product Name | Eaton Comet 18mm Tubular Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Sensor Type | Through Beam |
| Warranty | 3 yrs. |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 6.48 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Model | Ip Rating | Operating Mode | Response Time | Sensing Method | Body Material | Price | |
|---|---|---|---|---|---|---|---|
| 13104AQD05 | IP68, IP69K | Background Suppression | - | - | - | €650.57 | |
| 13105ASROHS | IP68, IP69K | Background Suppression | - | - | - | €391.81 | |
| 13101ANS8126 | IP68, IP69K | Background Suppression | - | - | - | €804.56 | |
| 13101APS8126 | IP68, IP69K | Background Suppression | - | - | - | €408.97 | |
| 13104RS5072 | IP68, IP69K | Background Suppression | - | - | - | €371.21 | |
| 13104RS7290 | IP68, IP69K | Background Suppression | - | - | - | €1,034.34 | |
| 12100RF1217 | IP68, IP69K | Thru Beam | - | - | - | €282.09 |
