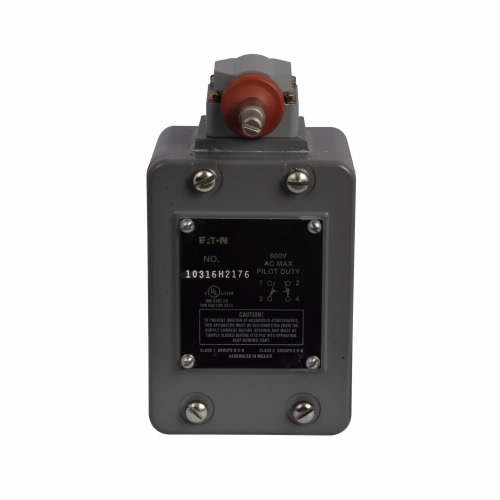

EATON 10316H2176 Limit Switch, Heavy Duty, Side Rotary Actuator, 1NO-1NC Contact
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Limit Switch |
| Connection | Screw Terminal |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 600V AC, 0.2A At 125V DC |
| Enclosure Material | Die Cast Aluminum |
| Environmental Rating | Division I Class I BCD, Division I Class II EFG |
| Height | 5.35" |
| Length | 3" |
| Max. Ac Amps | 10A |
| Max. Dc Amps | 0.2A |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | -20°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 4, NEMA 7, NEMA 9 |
| Notes | Field Convertible To CW Or CCW Only, 1 NO - 1 NC Contacts Must Be Same Polarity When Both Circuits Are Used. Nylatron Levers Should Be Used With Explosion - Proof Limit Switches. Call Factory For Availability Of CSA & CE Approval Status. |
| Switch Type | Side Rotary |
| Warranty | 1 yr. |
| Weight | 1.6813 lbs. |
| Width | 3 2/25" |
Shipping Info:
| Ship weight (kg) | 0.76 |
| Ship height (cm) | 13.59 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.82 |
| Country of Origin | US |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
10316H1006 | 10316H1006 | €2,677.62 | |
|
10316ED185 | 10316ED185 | - | RFQ
|
|
10316ED191 | 10316ED191 | €3,976.50 | |
 |
10316H1002 | 10316H1002 | €2,445.00 | |
 |
10316H1007 | 10316H1007 | €2,820.87 | |
|
10316H1009 | 10316H1009 | €2,530.51 | |
|
10316H1004 | 10316H1004 | €2,863.15 |
