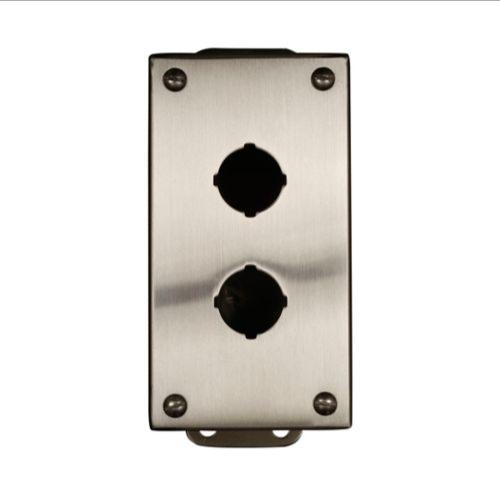

EATON 10250TN34 Push Button Enclosure, 30mm, 2 Holes, 304 Stainless Steel, NEMA 12/4/4X
Item: BJ4ZUCModel: 10250TN34Cross Ref: 39R234
7 In Stock
Ships within 2 days via
5.00% off
€882.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Bus Material | Stainless Steel |
| Compatible With Series | Series 10250T |
| Environments & Applications | Indoor Dust & Water Droplets, Washdown Corrosion Resistant |
| Gauge | 14 ga. |
| Grade | Grade 304 |
| Height | 5.1" |
| Length | 8.3" |
| Material | Stainless Steel |
| Max. Compatible Conduit Size | No Conduit Entrance Holes Provided |
| Mounting Style | Surface |
| Mounting Type | Surface |
| Nema Enclosure Rating | NEMA 12, NEMA 4, NEMA 4X |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12 |
| No. Of Columns | 1 |
| No. Of Elements | 2 |
| No. Of Holes | 2 |
| Overall Depth | 8 5/16" |
| Overall Height | 5 1/8" |
| Overall Width | 3 13/16" |
| Panel Mounting Hole Dia. | 30 mm |
| Type | 30.5 mm, Heavy-Duty Watertight/Oiltight |
| Width | 3 4/5" |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 9.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | No. Of Holes | Overall Width | Overall Height | Overall Depth | No. Of Elements | Material | Panel Mounting Hole Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10250TN35 | 5 1/5" | 3 | 5 7/8" | 5 3/16" | 9 7/8" | 3 | Stainless Steel | 30 mm | €1,056.68 | |
 |

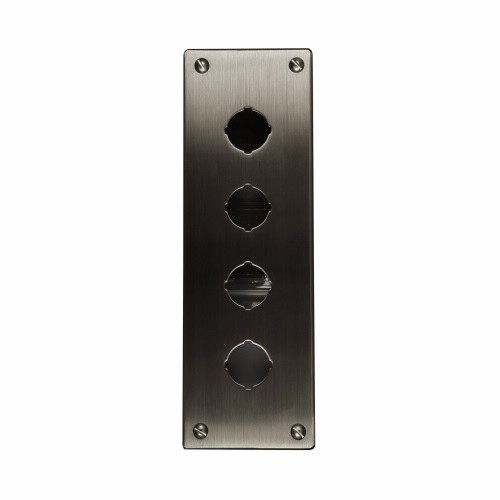

10250TN36 | 4.1" | 4 | 4 13/16" | 4 1/8" | 19 3/8" | 4 | Stainless Steel | 30 mm | €1,438.22 | |
 |

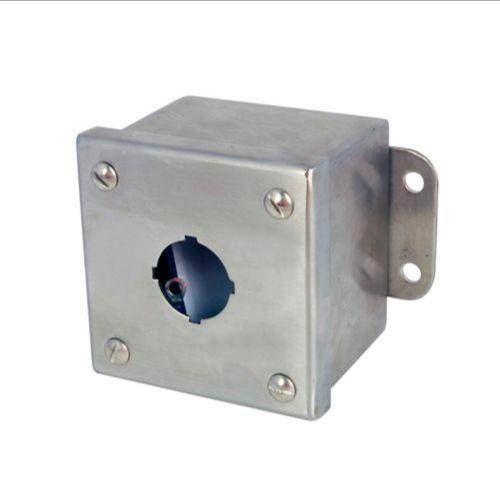

10250TN33 | 3 4/5" | 1 | 4 1/8" | 3 13/16" | 5 11/16" | 1 | Stainless Steel | 30 mm | €684.39 |
