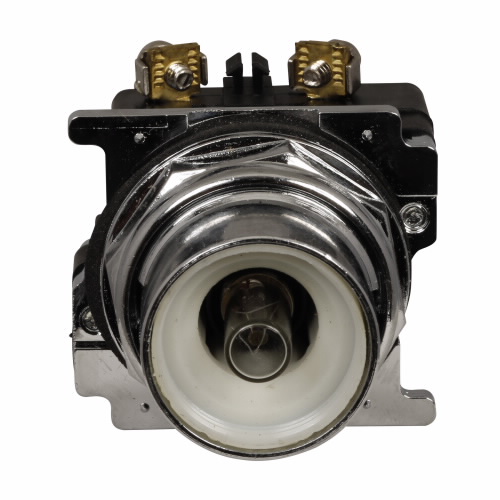

EATON 10250T471 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated | BJ4WJN 39P836

EATON 10250T471 Extended Push Button, 30 mm, Non-Metallic, Maintained/Momentary, Full Volt, Incandescent

Item: BJ4WJNModel: 10250T471Cross Ref: 39P836
7 In Stock

Ships within 2 days via

€337.79
10.00% off
€304.01 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pushbutton
Action Maintained/Momentary
Application Pushbutton
Bezel Material Zinc Die Cast
Features Drainage Holes, Grounding Nibs, One Piece Body
Hazardous Location Specification Class I, Div 2, Group B, C, D
Head Material Plastic
Height 3.3"
Illumination Illuminated
Ip Rating IP65
Lamp Bulb Type Incandescent
Lamp Module Type Full Voltage
Lamp Voltage - Maximum 120V AC
Length 2 2/5"
Light Unit Type Incandescent, Resistor
Light Unit Voltage 120V AC
Manufacturer Warranty Length 1 yr.
Nema Enclosure Rating NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Notes Contact Blocks 10250T55 And 10250T57 Cannot Be Used With This Operator
Number Of Indicator Lights 1
Number Of Positions 3
Number Of Push Buttons 1
Operating Mode Pull: Momentary Intermediate: Maintained Push: Momentary
Operating Temperature - Maximum 150°F
Operating Temperature - Minimum 1°F
Operator Illumination Illuminated
Operator Material Polymer
Overall Depth 2.4"
Overall Height 3.3"
Overall Width 2.1"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Extended
Series 10250T Series
Size 30.5 mm
Special Features 10250T Series
Standards Ce, Csa, Ul Listed
Terminal Connection Screw Clamp
Type 30.5 mm Heavy-Duty Watertight/Oiltight
Warranty 1 yr.
Width 2.1"

Shipping Info:

Ship weight (kg) 0.09
Ship height (cm)8.38
Ship length (cm)6.1
Ship width (cm)5.33
Country of OriginUS

Product Variants

ProductModelHeightLamp Module TypeHead MaterialTerminal ConnectionBezel MaterialContact FormBezelIp RatingPrice
EATON 10250T397LAD24-1 Pushbutton, 30.5 Mm, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary, Extended | BJ4VNK 39P585 10250T397LAD24-13"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NO/1NCChromeIP65€620.64
EATON 10250T397LAD24-53 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNL 39P579 10250T397LAD24-531.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NOChromeIP65€465.31
EATON 10250T397LAD2A-51 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNQ 39P610 10250T397LAD2A-511.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NCChromeIP65€465.31
EATON 10250T397LAD24-51 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNT 39P591 10250T397LAD24-511.78"-----Chrome-€465.31
EATON 10250T397LAD2A-1 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNU 39P604 10250T397LAD2A-11.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NO/1NCChromeIP65€620.64
EATON 10250T397LAD2A-53 Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary | BJ4VNW 39P597 10250T397LAD2A-531.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NOChromeIP65€465.31
EATON 10250T397LGD24-51 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Illuminated, Momentary, Extended | BJ4VPE 39P590 10250T397LGD24-511.78"Full VoltageMetalScrew ClampChrome Plated Zinc Die Cast1NCChromeIP65€465.31
