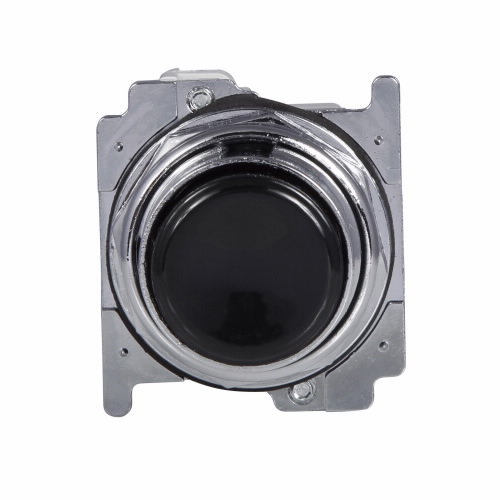

EATON 10250T31B Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated | BJ4VHZ 39P530

EATON 10250T31B Extended Push Button Operator, Non-Illuminated, Extended Profile, Metallic, 30 mm

Item: BJ4VHZModel: 10250T31BCross Ref: 39P530
7 In Stock

Ships within 2 days via

€268.88
5.00% off
€255.44 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pushbutton
Ac Contact Rating 10A @ 600V
Action Momentary
Actuator Color Black
Actuator Material Plastic
Actuator Type Extended
Bezel Chrome
Bezel Material Chrome Plated Zinc Die Cast
Contact Configuration 1 NC, 1 NO
Contact Form 1NO/1NC
Dc Contact Rating 5A @ 250V
Display Qty 1
Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Head Material Metal
Head/lens Color Black
Height 2"
Illumination Non-Illuminated
Ip Rating IP65
Length 3"
Max. Operating Temp. 150°F
Max. Operator Voltage Rating 120V AC/DC
Mechanical Operating Durability 1 x 10^7
Min. Operating Temp. 1°F
Nema Enclosure Rating NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
No. Of Indicator Lights 0
No. Of Operators 1
Operating Mode Momentary
Operator Illumination Non Illuminated
Operator Material Metal
Overall Depth 3"
Overall Height 2"
Overall Width 2"
Panel Mounting Hole Dia. 30 mm
Product Type Push Button Operators
Push Button Style Extended
Resistance Properties Oil And Grease Resistant, Watertight
Series 10250T Series
Terminal Connection Screw Clamp
Type 30.5 mm, Heavy-Duty
Width 2"

Shipping Info:

Ship weight (kg) 0.11
Ship height (cm)5.08
Ship length (cm)7.62
Ship width (cm)5.08
Country of OriginUS

Product Variants

ProductModelBezel MaterialOperator MaterialHead/lens ColorActuator ColorPush Button StyleActionMax. Operating Temp.Min. Operating Temp.Price
EATON 10250T101-2 PushbuttonPushbutton, Class I Division 2 | BJ4RKN 39P543 10250T101-2Chrome Plated Zinc Die CastMetalBlackBlackFlushMomentary150°F1°F€268.88
EATON 10250T101-3 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RKX 39P560 10250T101-3Chrome Plated Zinc Die CastMetalBlackBlackFlushMomentary150°F1°F€242.96
EATON 10250T101-51 Pushbutton, Class I Division 2, Black | BJ4RLC 39P509 10250T101-51Chrome Plated Zinc Die CastMetalBlackBlackFlushMomentary150°F1°F€194.97
EATON 10250T102-2 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RLD 39P544 10250T102-2Chrome Plated Zinc Die CastMetalRedRedFlushMomentary150°F1°F€268.88
EATON 10250T102-51 Pushbutton, Class I Division 2, Red | BJ4RLL 39P510 10250T102-51Chrome Plated Zinc Die CastMetalRedRedFlushMomentary150°F1°F€194.97
EATON 10250T102-3 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RLN 39P561 10250T102-3Chrome Plated Zinc Die CastMetalRedRedFlushMomentary150°F1°F€268.88
EATON 10250T103-3 Pushbutton, Class I Division 2, Green | BJ4RLY 39P562 10250T103-3Chrome Plated Zinc Die CastMetalGreenGreenFlushMomentary150°F1°F€268.88
