EATON 10250T2E Contact Block, 30 mm Size, Operator, 2NO Logic Level, 0.5A, 120 VAC, Momentary
Item: BJ4VEDModel: 10250T2ECross Ref: 39R032
7 In Stock
Ships within 2 days via
10.00% off
€225.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contact Block |
| Ac Contact Rating | 0.5A @ 120V |
| Application | Operator |
| Color | Gray |
| Compatible Operator | Push Button |
| Compatible With Series | 10250T, E34 |
| Contact Form | 2NO |
| Dc Contact Rating | 10A @ 600V |
| Includes Mounting Block | Mounting Block Included |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Location | Front |
| Nema Contact Rating Designation | A600/P600 |
| Panel Mounting Hole Diameter | 30 mm |
| Product Height | 2 1/5" |
| Product Width | 1.3" |
| Standards | Ce, Csa, Ul Listed |
| Switch Action | Momentary |
| Terminal Connection Type | Screw Clamp Terminals |
| Terminals | Pressure |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 3.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Height | Type | Terminal Connection Type | Nema Contact Rating Designation | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

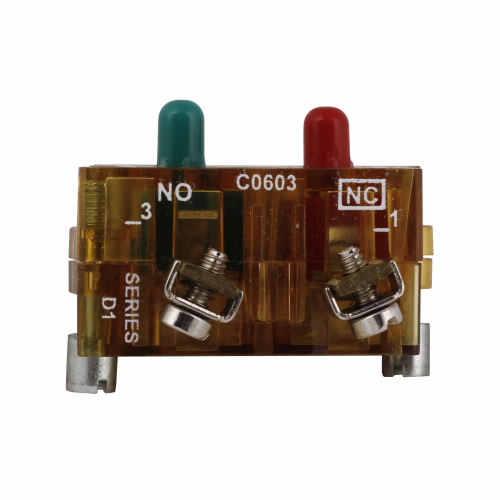

10250T1E | Gray | - | - | Screw Clamp Terminals | A600/P600 | Operator | €355.58 | |
 |

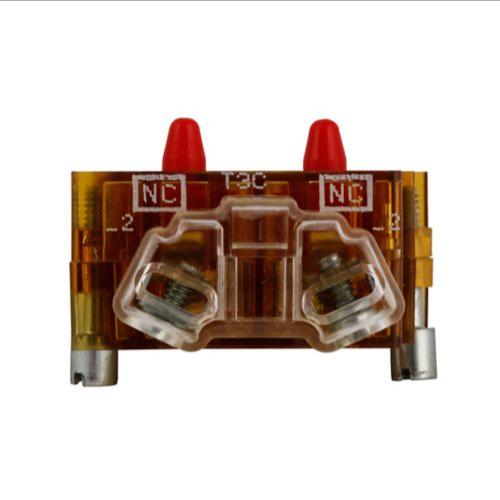

10250T3E | Gray | - | - | Screw Clamp Terminals | A600/P600 | Operator | €330.56 | |
 |

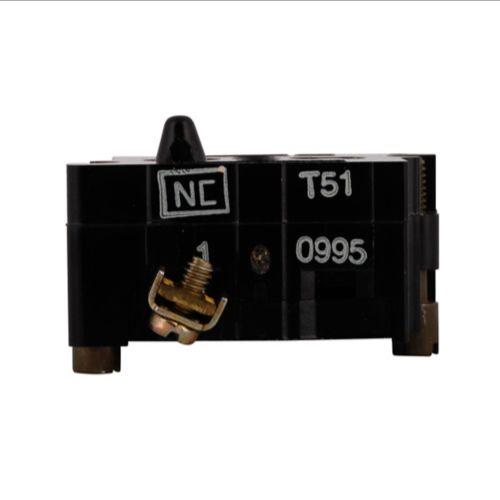

10250T51E | Gray | - | - | Screw Clamp Terminals | A600/P600 | Operator | €159.35 | |
 |
10250T53E | Gray | - | - | Screw Clamp Terminals | A600/P600 | - | €163.62 | |
 |
10250T47 | Black | - | - | Screw Clamp Terminals | A600/P600 | Operator | €115.57 | |
 |
10250T55 | Black | - | - | Screw Clamp Terminals | A600/P600 | Operator | €140.15 | |
 |
10250T57 | Black | 2 1/5" | 30.5 mm, Heavy-Duty | Screw Clamp Terminals | A600/P600 | - | €121.80 |
