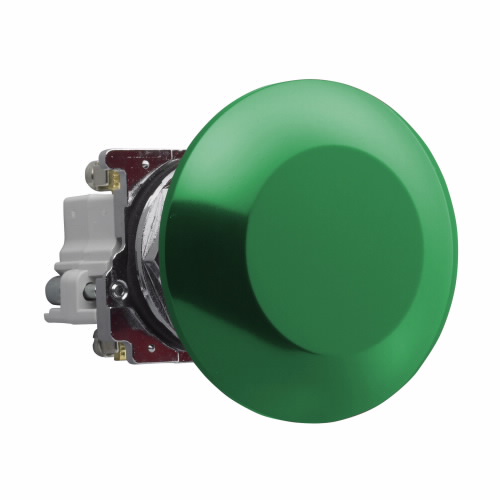

EATON 10250T27G Pushbutton, 30.5 Mm, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13 | BJ4VAQ 39P506

EATON 10250T27G Non-illuminated Pushbutton, Heavy Duty, 65 mm, 1NO Contact, Green

Item: BJ4VAQModel: 10250T27GCross Ref: 39P506
7 In Stock

Ships within 2 days via

€320.52
10.00% off
€288.47 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pushbutton
Ac Contact Rating 10A @ 600V
Action Momentary
Actuator Color Green
Actuator Material Anodized Aluminum
Basic Material Metal
Bezel Material Chrome Plated Zinc Die Cast
Bus Material Zinc Die Cast
Contact Form 1NO
Dc Contact Rating 5A @ 250V
Display Qty 1
Features Diaphragm Seals, Enclosed Silver Contacts With Reliability Nibs, Grounding Nibs
Head Material Metal
Head/lens Color Green
Ip Rating IP65
Legend No Legend
Manufacturer Warranty Length 1 yr.
Mechanical Operating Durability 1 x 10^7
Mushroom Head Diameter 65 mm
Nema Enclosure Rating NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Indicator Lights 0
Number Of Operators 1
Operating Mode Momentary
Operating Temperature - Maximum 150°F
Operating Temperature - Minimum 1°F
Operator Illumination Non Illuminated
Operator Material Metal
Operator Voltage Rating - Maximum 120V AC/DC
Overall Depth 1"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 30 mm
Product Diameter 2 1/2"
Product Height 1"
Product Type Push Button Operators
Product Width 1"
Push Button Style Mushroom Head
Resistance Properties Oil And Grease Resistant, Watertight
Series 10250T Series
Standards Ce, Csa, Ul Listed
Terminal Connection Screw Clamp

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelContact FormSizeBezel MaterialContact ConfigurationTypeLegendDiameterHead MaterialPrice
EATON 10250T101-2 PushbuttonPushbutton, Class I Division 2 | BJ4RKN 39P543 10250T101-22NO30.5 mmChrome Plated Zinc Die Cast2 NOClass I Division 2--Metal€268.88
EATON 10250T101-3 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RKX 39P560 10250T101-32NC-Chrome Plated Zinc Die Cast2 NCPushbutton--Metal€242.96
EATON 10250T101-51 Pushbutton, Class I Division 2, Black | BJ4RLC 39P509 10250T101-511NC30.5 mmChrome Plated Zinc Die Cast1 NCClass I Division 2--Metal€194.97
EATON 10250T102-2 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RLD 39P544 10250T102-22NO-Chrome Plated Zinc Die Cast2 NOPushbutton--Metal€268.88
EATON 10250T102-51 Pushbutton, Class I Division 2, Red | BJ4RLL 39P510 10250T102-511NC30.5 mmChrome Plated Zinc Die Cast1 NCClass I Division 2--Metal€194.97
EATON 10250T102-3 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RLN 39P561 10250T102-32NC-Chrome Plated Zinc Die Cast2 NCPushbutton--Metal€268.88
EATON 10250T103-3 Pushbutton, Class I Division 2, Green | BJ4RLY 39P562 10250T103-32NC30.5 mmChrome Plated Zinc Die Cast2 NCClass I Division 2--Metal€268.88
