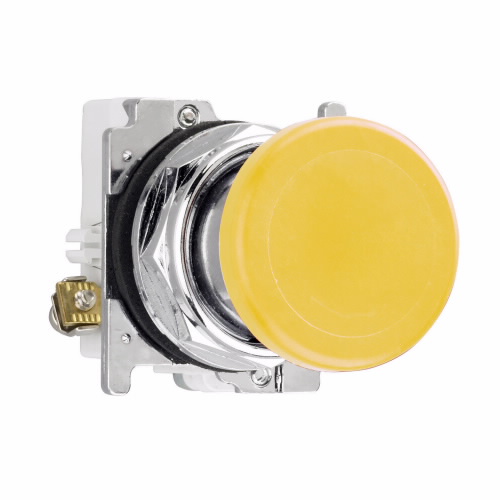

EATON 10250T26Y Non-Illuminated Push Button, 30mm Size, Momentary Push, Yellow, Metal
Item: BJ4VATModel: 10250T26YCross Ref: 39P503
7 In Stock
Ships within 2 days via
5.00% off
€297.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Actuator Color | Yellow |
| Actuator Material | Plastic |
| Basic Material | Metal |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Bus Material | Zinc Die Cast |
| Contact Form | 1NO |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Diaphragm Seals, Enclosed Silver Contacts With Reliability Nibs, Grounding Nibs |
| Head Material | Metal |
| Head/lens Color | Yellow |
| Ip Rating | IP65 |
| Legend | No Legend |
| Max. Operating Temp. | 150°F |
| Max. Operator Voltage Rating | 120V AC/DC |
| Mechanical Operating Durability | 1 x 10^7 |
| Min. Operating Temp. | 1°F |
| Mushroom Head Dia. | 40 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operating Mode | Momentary |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 3" |
| Overall Height | 2" |
| Overall Width | 2" |
| Panel Mounting Hole Dia. | 30 mm |
| Product Height | 2" |
| Product Type | Push Button Operators |
| Product Width | 2" |
| Push Button Style | Mushroom Head |
| Resistance Properties | Oil And Grease Resistant, Watertight |
| Series | 10250T Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Bezel Material | Operator Material | Head/lens Color | Actuator Color | Push Button Style | Action | Max. Operating Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10250T101-2 | Chrome Plated Zinc Die Cast | Metal | Black | Black | Flush | Momentary | 150°F | 1°F | €268.88 | |
|
10250T101-3 | Chrome Plated Zinc Die Cast | Metal | Black | Black | Flush | Momentary | 150°F | 1°F | €242.96 | |
|
10250T101-51 | Chrome Plated Zinc Die Cast | Metal | Black | Black | Flush | Momentary | 150°F | 1°F | €194.97 | |
 |
10250T102-2 | Chrome Plated Zinc Die Cast | Metal | Red | Red | Flush | Momentary | 150°F | 1°F | €268.88 | |
 |
10250T102-51 | Chrome Plated Zinc Die Cast | Metal | Red | Red | Flush | Momentary | 150°F | 1°F | €194.97 | |
|
10250T102-3 | Chrome Plated Zinc Die Cast | Metal | Red | Red | Flush | Momentary | 150°F | 1°F | €268.88 | |
 |
10250T103-3 | Chrome Plated Zinc Die Cast | Metal | Green | Green | Flush | Momentary | 150°F | 1°F | €268.88 |
