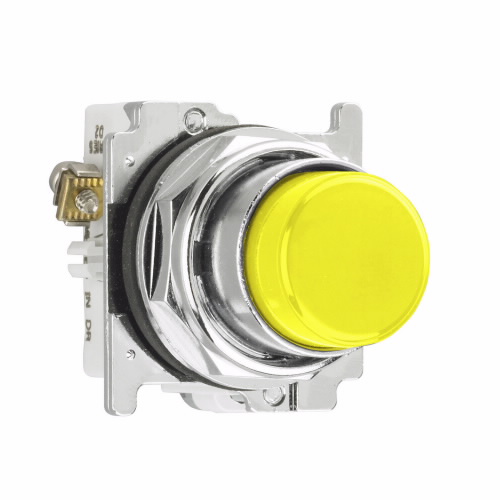

EATON 10250T25Y Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4UZY 39P498

EATON 10250T25Y Non-Illuminated Push Button, 30mm Size, Momentary Push, Yellow, Metal

Item: BJ4UZYModel: 10250T25YCross Ref: 39P498
7 In Stock

Ships within 2 days via

€194.97
10.00% off
€175.48 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pushbutton
Ac Contact Rating 10A @ 600V
Action Momentary
Actuator Color Yellow
Actuator Material Plastic
Actuator Type Extended
Bezel Chrome
Bezel Material Chrome Plated Zinc Die Cast
Contact Configuration 1 NO
Contact Form 1NO
Dc Contact Rating 5A @ 250V
Display Qty 1
Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Head Material Metal
Head/lens Color Yellow
Height 1"
Illumination Non-Illuminated
Ip Rating IP65
Length 1"
Manufacturer Warranty Length 1 yr.
Mechanical Operating Durability 1 x 10^7
Nema Enclosure Rating NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Indicator Lights 0
Number Of Operators 1
Operating Mode Momentary
Operating Temperature - Maximum 150°F
Operating Temperature - Minimum 1°F
Operator Illumination Non Illuminated
Operator Material Metal
Operator Voltage Rating - Maximum 120V AC/DC
Overall Depth 1"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Extended
Resistance Properties Oil And Grease Resistant, Watertight
Series 10250T Series
Standards Ce, Csa, Ul Listed
Terminal Connection Screw Clamp
Type 30.5 mm, Heavy-Duty
Warranty 1 yr.
Width 1"

Shipping Info:

Ship weight (kg) 0.05
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelContact FormSizeBezel MaterialContact ConfigurationTypeLegendDiameterHead MaterialPrice
EATON 10250T101-2 PushbuttonPushbutton, Class I Division 2 | BJ4RKN 39P543 10250T101-22NO30.5 mmChrome Plated Zinc Die Cast2 NOClass I Division 2--Metal€268.88
EATON 10250T101-3 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RKX 39P560 10250T101-32NC-Chrome Plated Zinc Die Cast2 NCPushbutton--Metal€242.96
EATON 10250T101-51 Pushbutton, Class I Division 2, Black | BJ4RLC 39P509 10250T101-511NC30.5 mmChrome Plated Zinc Die Cast1 NCClass I Division 2--Metal€194.97
EATON 10250T102-2 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RLD 39P544 10250T102-22NO-Chrome Plated Zinc Die Cast2 NOPushbutton--Metal€268.88
EATON 10250T102-51 Pushbutton, Class I Division 2, Red | BJ4RLL 39P510 10250T102-511NC30.5 mmChrome Plated Zinc Die Cast1 NCClass I Division 2--Metal€194.97
EATON 10250T102-3 Pushbutton, Heavy-Duty, Nema 3, 3R, 4, 4X, 12, 13, Non-Illuminated, Momentary | BJ4RLN 39P561 10250T102-32NC-Chrome Plated Zinc Die Cast2 NCPushbutton--Metal€268.88
EATON 10250T103-3 Pushbutton, Class I Division 2, Green | BJ4RLY 39P562 10250T103-32NC30.5 mmChrome Plated Zinc Die Cast2 NCClass I Division 2--Metal€268.88
