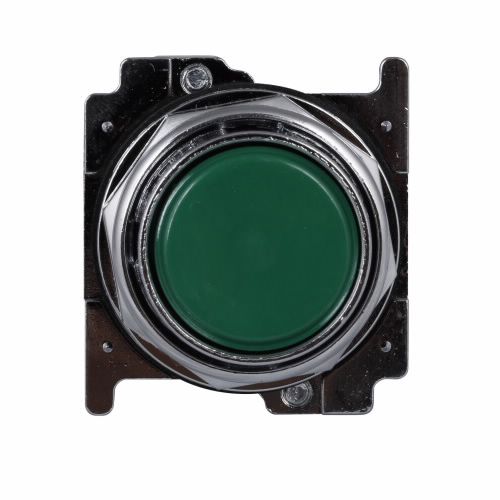

EATON 10250T23G Non-Illuminated Push Button, 30mm Size, Momentary Push, Green, Metal
Item: BJ4UWPModel: 10250T23GCross Ref: 39P493
7 In Stock
Ships within 2 days via
10.00% off
€175.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Actuator Color | Green |
| Actuator Material | Plastic |
| Bezel | Chrome |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Contact Configuration | 1 NO |
| Contact Form | 1NO |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs |
| Field Color | Black |
| Head Material | Metal |
| Head/lens Color | Green |
| Height | 3 2/5" |
| Illumination | Non-Illuminated |
| Ip Rating | IP65 |
| Length | 2 2/5" |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 1 x 10^7 |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 1°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 120V AC/DC |
| Overall Depth | 2.4" |
| Overall Height | 3 2/5" |
| Overall Width | 2.1" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Oil And Grease Resistant, Watertight |
| Series | 10250T Series |
| Size | 30.5 mm |
| Standards | Ce, Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
| Type | Class I Division 2 |
| Warranty | 1 yr. |
| Width | 2.1" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 5.33 |
| Country of Origin | US |
Product Variants
| Product | Model | Contact Form | Size | Bezel Material | Contact Configuration | Type | Legend | Diameter | Head Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10250T101-2 | 2NO | 30.5 mm | Chrome Plated Zinc Die Cast | 2 NO | Class I Division 2 | - | - | Metal | €268.88 | |
|
10250T101-3 | 2NC | - | Chrome Plated Zinc Die Cast | 2 NC | Pushbutton | - | - | Metal | €242.96 | |
|
10250T101-51 | 1NC | 30.5 mm | Chrome Plated Zinc Die Cast | 1 NC | Class I Division 2 | - | - | Metal | €194.97 | |
 |
10250T102-2 | 2NO | - | Chrome Plated Zinc Die Cast | 2 NO | Pushbutton | - | - | Metal | €268.88 | |
 |
10250T102-51 | 1NC | 30.5 mm | Chrome Plated Zinc Die Cast | 1 NC | Class I Division 2 | - | - | Metal | €194.97 | |
|
10250T102-3 | 2NC | - | Chrome Plated Zinc Die Cast | 2 NC | Pushbutton | - | - | Metal | €268.88 | |
 |
10250T103-3 | 2NC | 30.5 mm | Chrome Plated Zinc Die Cast | 2 NC | Class I Division 2 | - | - | Metal | €268.88 |
