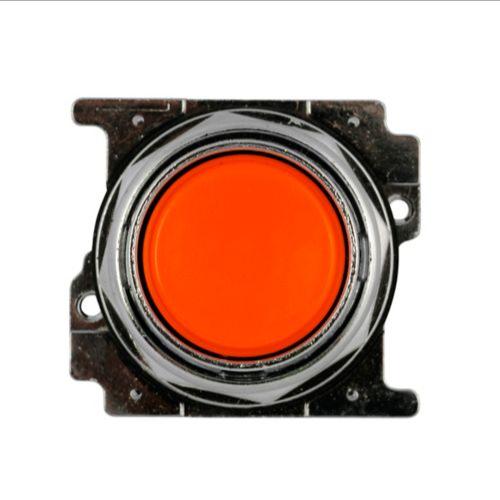

EATON 10250T109 Push Button Operator, 30 mm Size, Momentary Push, Orange, Flush Button
Item: BJ4RPYModel: 10250T109Cross Ref: 39P901
7 In Stock
Ships within 2 days via
10.00% off
€107.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Momentary |
| Actuator Color | Orange |
| Actuator Material | Plastic |
| Basic Material | Metal |
| Bezel Material | Zinc Die Cast |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Plastic |
| Head/lens Color | Orange |
| Ip Rating | IP65 |
| Legend | No Legend |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Number Of Push Buttons | 1 |
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 1°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polymer |
| Overall Height | 2 1/5" |
| Overall Width | 1.9" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Height | 2 1/5" |
| Product Type | Push Button Operators |
| Product Width | 1.9" |
| Push Button Style | Flush |
| Series | 10250T Series |
| Standards | Ce, Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.83 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Material | Bezel Material | Legend | Type | Basic Material | Size | Contact Form | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10250ED1043-4 | Plastic | Zinc Die Cast | No Legend | - | Metal | - | - | IP65 | €350.96 | |
 |
10250ED1164-3 | Plastic | Zinc Die Cast | - | Pushbutton | - | - | - | IP65 | €392.15 | |
|
10250ED1164-2 | Plastic | Zinc Die Cast | - | Pushbutton | - | - | - | IP65 | €392.15 | |
|
10250ED1164 | Plastic | Zinc Die Cast | - | Pushbutton | - | - | - | IP65 | €333.05 | |
|
10250ED1164-5 | Plastic | Zinc Die Cast | - | Pushbutton | - | - | - | IP65 | €392.15 | |
|
10250ED1164-4 | Plastic | Zinc Die Cast | - | Pushbutton | - | - | - | IP65 | €392.15 | |
 |
10250ED1241 | - | - | - | - | - | - | - | - | €307.99 |
