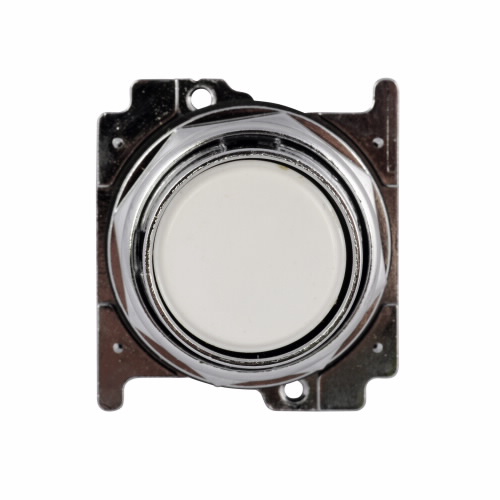

EATON 10250T106 Non-illuminated Pushbutton Operator, Heavy Duty, 30.5 mm, White
Item: BJ4RNUModel: 10250T106Cross Ref: 39P898
7 In Stock
Ships within 2 days via
5.00% off
€119.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Momentary |
| Actuator Color | White |
| Actuator Material | Plastic |
| Basic Material | Metal |
| Bezel Material | Zinc Die Cast |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Plastic |
| Head/lens Color | White |
| Ip Rating | IP65 |
| Legend | No Legend |
| Max. Operating Temp. | 150°F |
| Min. Operating Temp. | 1°F |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| No. Of Push Buttons | 1 |
| Operating Mode | Momentary |
| Operator Illumination | Non Illuminated |
| Operator Material | Polymer |
| Overall Depth | 1.9" |
| Overall Height | 2 1/5" |
| Overall Width | 1 4/5" |
| Panel Mounting Hole Dia. | 30 mm |
| Product Height | 2 1/5" |
| Product Type | Push Button Operators |
| Product Width | 1 4/5" |
| Push Button Style | Flush |
| Series | 10250T Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Material | Bezel Material | Operator Material | Head/lens Color | Product Type | Push Button Style | Action | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10250ED1043-4 | Plastic | Zinc Die Cast | Polymer | Red | Emergency Stop Push Buttons | Mushroom Head | Maintained | 3 1/5" | €350.96 | |
 |
10250ED1164-3 | Plastic | Zinc Die Cast | Polymer | Red | Push Button Operators | Mushroom Head | Momentary | 1" | €392.15 | |
|
10250ED1164-2 | Plastic | Zinc Die Cast | Polymer | Black | Push Button Operators | Mushroom Head | Momentary | 1" | €392.15 | |
|
10250ED1164 | Plastic | Zinc Die Cast | Polymer | Clear | Push Button Operators | Mushroom Head | Momentary | 3 2/5" | €333.05 | |
|
10250ED1164-5 | Plastic | Zinc Die Cast | Polymer | Yellow | Push Button Operators | Mushroom Head | Momentary | 3.3" | €392.15 | |
|
10250ED1164-4 | Plastic | Zinc Die Cast | Polymer | Green | Push Button Operators | Mushroom Head | Momentary | 1" | €392.15 | |
 |
10250ED1241 | - | - | - | - | - | - | - | - | €307.99 |
