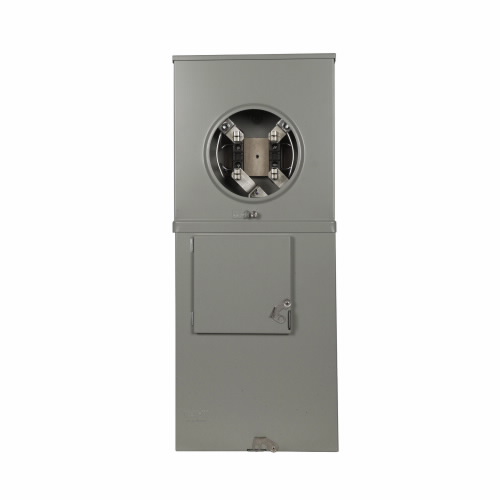

EATON 1009582CH Single Meter Socket, 240 VAC, 200A, 1 Phase, 3-Wire, 1-Position
Get it by Tuesday, Dec 23
€3,612.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket |
| Amps Rating | 200A |
| Bypass | Horn |
| Feed Type | Overhead |
| Height | 29.37" |
| Hub Size | 3 5/16" |
| Hub Type | Hub Cover Plate |
| Length | 4.37" |
| Line | #8-2/0 AWG |
| Load | #8-2/0 AWG |
| Main Circuit Breaker | 200A |
| Number Of Jaws | 5 |
| Number Of Sockets | 1 |
| Number Of Wires | 3 |
| Phase | 1 |
| Secondary Circuit Breaker | Provisions for (1) 100A max plug-in |
| Security | Ringless |
| Type | Residential/commercial |
| Utility Approvals | IL : Commonwealth Edison (ComEd) / CECHA |
| Voltage Rating | 240V |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 12" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 74.6 |
| Ship length (cm) | 11.1 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
