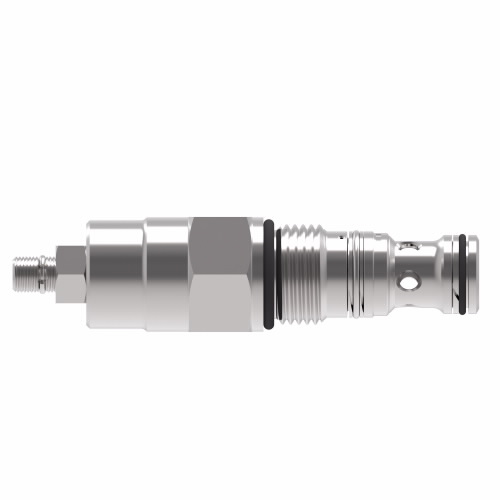

EATON 02-177000 Motion Control Valve Cbv1-10V-S-0-A-30/25
Get it by Tuesday, Dec 23
€560.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Valve |
| Adjustment Type | Screw |
| Application | Harvesters, Refuse Haulers, Mobile And Industrial Applications |
| Cavity | C-10-3S |
| Features | None |
| Flow Rate | 60 LPM |
| Fluid Compatibility | MILA-HA-5606, SAE 10, SAE 20, Etc |
| Function | Counter Balance Valve |
| Height | 1 1/4" |
| Housing | No |
| Installation Type | Screw In Cartridge |
| Leakage Rate | 0.25 cc/min. |
| Length | 4.9" |
| Max. Relief Pressure | 350 Bar |
| Maximum Load Induced Pressure | 350 Bar |
| Maximum Pilot Adjustment | 37.4 Bar |
| Minimum Pilot Adjustment | 30.6 Bar |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temp. | -40°C to +120°C |
| Operation | Pilot Operated |
| Pilot Ratio | 4,1 |
| Port Size | Not Available |
| Port Type | Cartridge Only |
| Pressure Rating | 350 Bar |
| Recommended Filtration Level | 13 µm, 16 µm, 18 µm |
| Seal Material | Nitrile |
| Style | 3-Ported, Externally Piloted |
| Valve Material | Steel |
| Warranty | Hydraulics Warranty |
| Weight | 0.79 lbs. |
| Width | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
