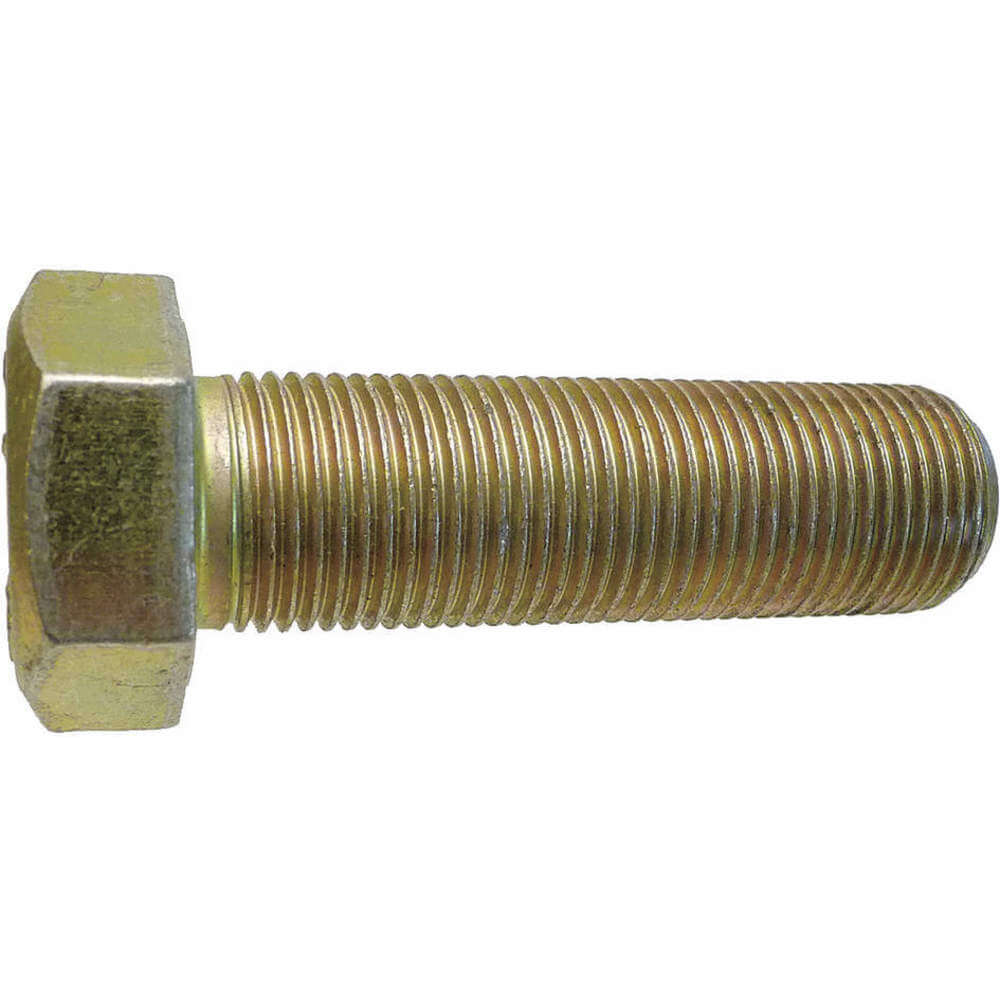

EARNEST 694434G Tap Bolt, 7/16 In - 14 Thread Size, 4 In Lg., 19/64 In Head Ht., 5/8 In Head Wd., 150000 psi TS
Item: AB6ETFModel: 694434GCross Ref: 21C485
7 In Stock
Ships within 2 days via
5.00% off
€58.65 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap Bolt |
| Drive | Hex |
| Drive Size | 5/8" |
| Drive Type | Hex |
| Fastener Length | 4" |
| Finish | Zinc Yellow |
| Grade | Grade 8 |
| Hardness | Rockwell C33 |
| Head Height | 19/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 5/8" |
| Hex Head Cap Screw Type | Hex Tap Bolt |
| Length | 4" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 1 1/8" |
| Overall Length | 4" |
| Rockwell Hardness | Hrc33 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1 1/8" |
| Thread Size | 7/16"-14 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Hex Tap Bolt |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 14.22 |
| HS code | 7318158069 |
| Country of Origin | TW |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U04114.043.0200 | Fully Threaded | 2" | - | - | 19/64" | 5/8" | Right Hand | - | 25 | €92.58 | |
| U04114.043.0225 | Fully Threaded | 2 1/4" | 2 1/4" | 2 1/4" | 19/64" | 5/8" | Right Hand | Grade 8 | 10 | €29.46 | |
| U04114.043.0300 | Fully Threaded | 3" | 3" | 3" | 19/64" | 5/8" | Right Hand | Grade 8 | 10 | €47.56 |
