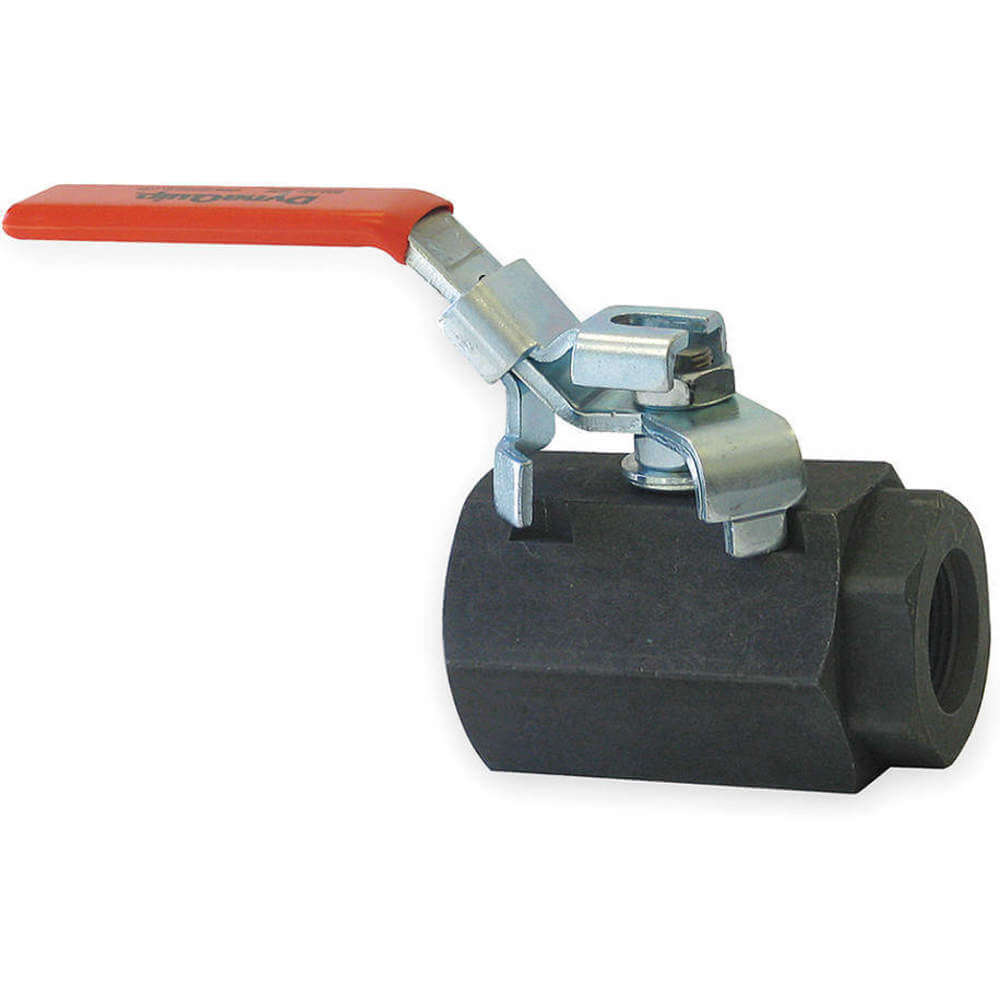

DYNAQUIP CONTROLS VLE2.AK0P 1 Ball Valve, 1 in Pipe, Full, 3000 psi CWP, -20 to 425 Deg F, Latching Lockout Handle
Item: AA8ZDPModel: VLE2.AK0P 1Cross Ref: 1AWT5
7 In Stock
Ships within 2 days via
13.00% off
€175.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Average Surface Roughness (ra) | Not Applicable |
| Ball Finish | Carbon Steel , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Seal Material | PTFE |
| Coefficient Of Volume(cv) | 54 |
| Color | Orange |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1" |
| Connection Size-side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Water |
| General Connection Type | Female NPT |
| Handle | Locking Lever |
| Handle Color | Orange |
| Handle Height | 3.65" |
| Handle Length | 5.1" |
| Handle Material | Steel |
| Handle Type | Latching Lockout |
| Handle-locking | Locking |
| Included Mounting | Not Applicable |
| Max. Operating Pressure | 3000 psi |
| Max. Operating Temp. | 425°F |
| Max. Pressure | 3000 psi WOG |
| Max. Pressure (cwp) | 3000 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. | -20°F to +425°F |
| No. Of Pieces | 2 |
| Nominal Valve Size | 1" |
| Overall Length | 3.93" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1" |
| Port | Full |
| Pressure | 150 psi |
| Pressure For Water | 3000 psi WOG |
| Product Type | Ball Valve |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Stem Finish | Nickel Plated , Steel |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +425°F |
| Type | Two Piece |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | Vle |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 12.45 |
| HS code | 8481803070 |
| Country of Origin | US |
Product Variants
| Model | Seat Material | Nominal Valve Size | Connection Size-side 2 | Connection Size-side 1 | Handle Height | Handle Length | Handle Type | Stem Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VLE2.AK0P 1/4 | RPTFE | 1/4" | 1/4" | 1/4" | 2.14" | 3.78" | Latching Lockout | Blowout Resistant | €55.45 | |
| VLE2.AK0P 3/8 | RPTFE | 3/8" | 3/8" | 3/8" | 2.14" | 3.78" | Latching Lockout | Blowout Resistant | €56.16 | |
| VLE2.AK0P 1/2 | RPTFE | 1/2" | 1/2" | 1/2" | 2.55" | 4.78" | Latching Lockout | Blowout Resistant | €120.18 | |
| VLE2.AK0P 3/4 | RTFE | 3/4" | 3/4" | 3/4" | 2.82" | 4.78" | Latching Lockout | Blowout Proof | €148.11 | |

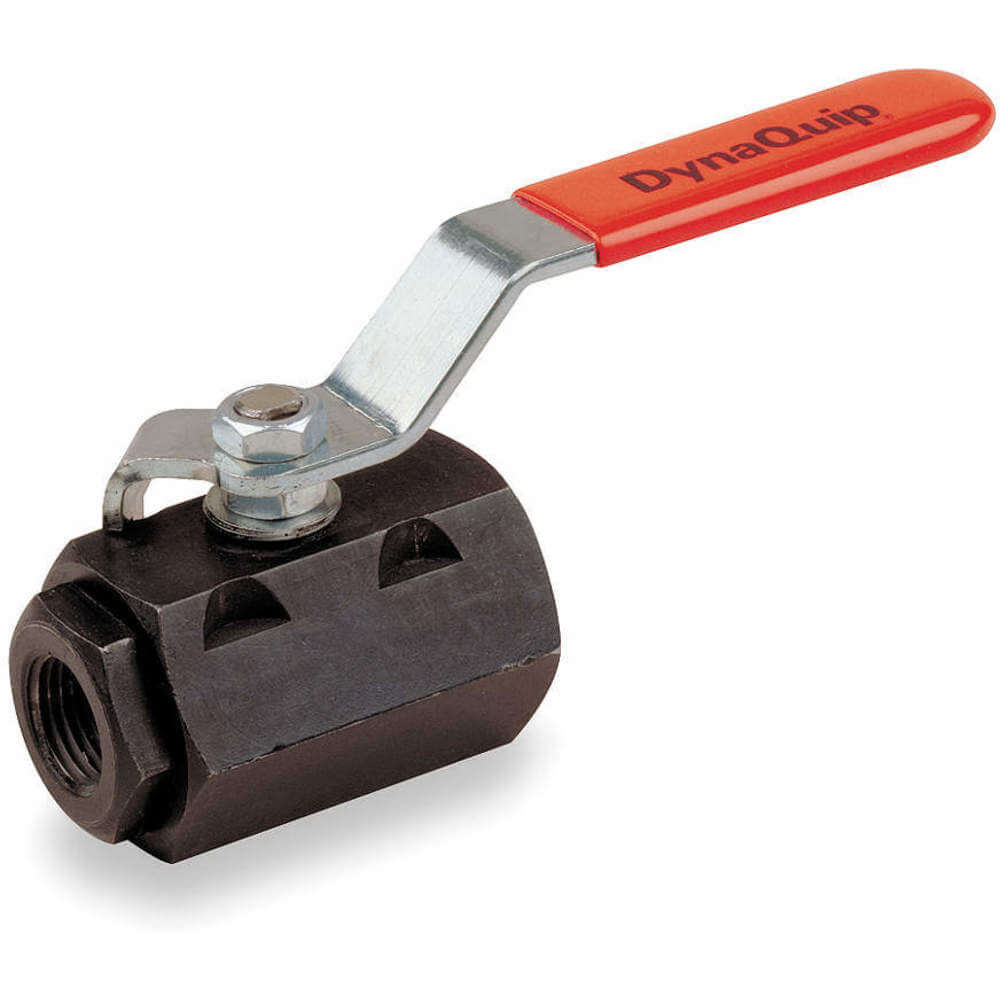

| VLE2.AK 1 | RPTFE | 1" | 1" | 1" | 3.65" | 5.1" | Lever | Blowout Resistant | €177.69 |
