DYNAQUIP CONTROLS PHG23ATS012A Ball Valve Pneumatic Actuated Double Act 1/2in | AG6TYH 46Z617

DYNAQUIP CONTROLS PHG23ATSR05210A Pneumatic Actuated Ball Valve, Full, 1/2 in, FNPT, Lead Free Brass, 2 Pcs

Item: AG6TYHModel: PHG23ATSR05210ACross Ref: 46Z617
7 In Stock

Ships within 2 days via

€815.35 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Pneumatic Actuated Ball Valve
3-a Certified Not Rated
Actuator Features Position Indicator
Actuator Operation Air To Spring
Actuator Type Single Acting Spring Return
Ball Finish Brass , Chrome Plated
Ball Port Style Full Port
Ball Valve Product Group Actuated
Body Material Brass
Body Style Inline
Coefficient Of Volume 19
Connection Gender Side 2 Female
Connection Gender-side 1 Female
Connection Size-side 1 1/2"
Connection Size-side 2 1/2"
Connection Type FNPT x FNPT
Connection Type-side 1 NPT
Connection Type-side 2 NPT
Fail Safe Position Fail Closed
Finish Chrome Plated
For Media Water
Included Mounting Actuator Mounting Pad
Ip Rating IP65
Max. Actuator Air Pressure 120 psi
Max. Actuator Ambient Temp. 176°F
Max. Differential Pressure 120 psi
Max. Inlet Pressure 120 psi
Max. Media Temp. 176°F
Max. Pressure 600 psi
Max. Pressure (cwp) 600 psi
Max. Pressure-combustible Gas Not Rated
Max. Pressure-steam 150 psi
Media Temp. -4°F to +176°F
Min. Actuator Air Pressure 80 psi
Min. Actuator Ambient Temp. -4°F
Min. Media Temp. -4°F
Mount Direct
Nema Enclosure Rating NEMA 4X
No. Of Pieces 2
Nominal Valve Size 1/2"
Nsf Certifications For Food And Drinking Water NSF 61
Operation Spring Return
Pilot Solenoid Voltage Not Included
Pipe Size 1/2"
Port Full
Required Pressure 80 psi
Seal Material FKM
Seat Material PTFE
Standards Ce, Csa, Reach, Rohs, En12165
Stem Finish Brass , Nickel Plated
Temp. -10°F to +195°F
Vacuum Service Rating 29 in. hg
Valve Body Style Straight
Valve Construction Two-Piece
Valve Deactivated State normally Closed (NC)
Valve Ways 2-Way
Vented Ball Valve Non Vented

Shipping Info:

Ship weight (kg) 1.6
Ship height (cm)9.65
Ship length (cm)20.07
Ship width (cm)14.99
HS code8481809035

Product Variants

ProductModelSeal MaterialPipe SizeOperationStem FinishBall FinishSeat MaterialMax. Inlet PressureConnection TypePrice

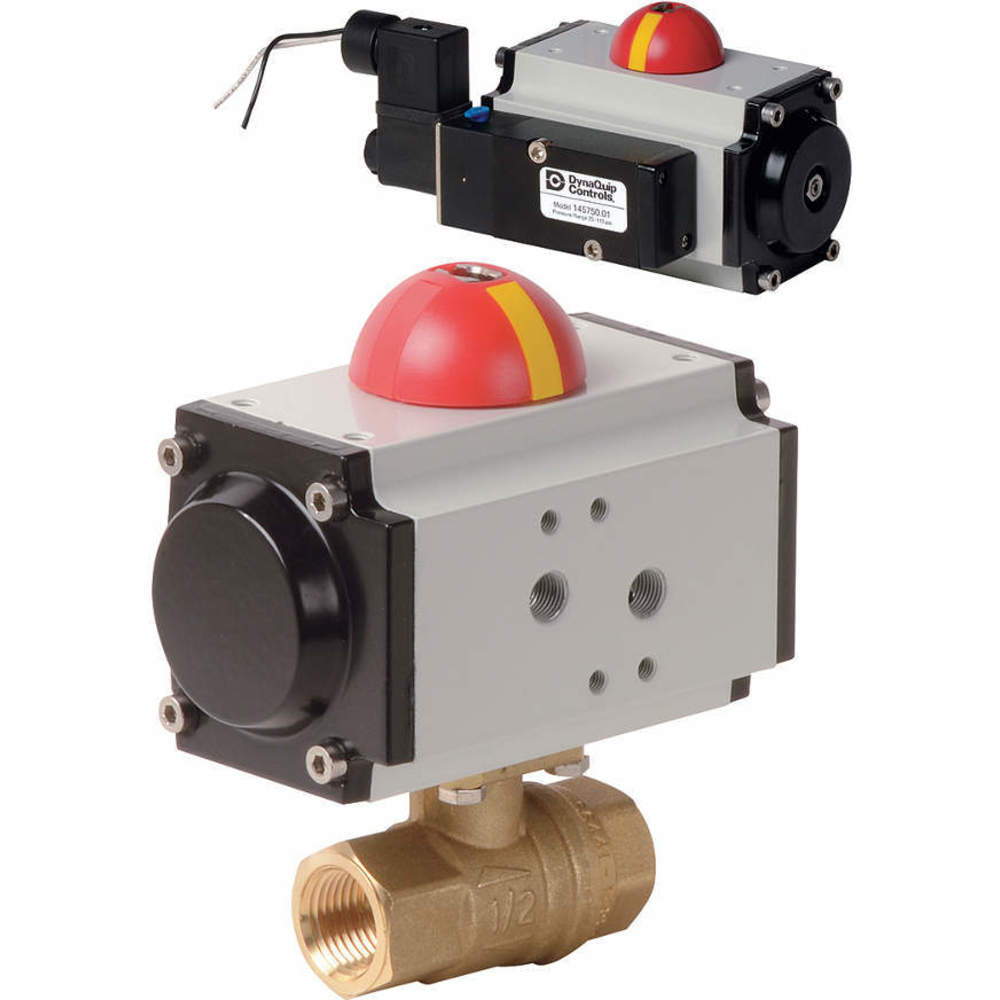

DYNAQUIP CONTROLS PHG27ATD03A Ball Valve Pneumatic Actuated Double Act 1-1/2in | AD6PTW 46Z616 PHG27ATDA063AFKM, RPTFE1 1/2"Double ActingNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€1,095.84
DYNAQUIP CONTROLS PHG27ATS054A Ball Valve Pneumatic Actuated Double Act 1-1/2in | AD6PTX 46Z621 PHG27ATS054AFKM1 1/2"Spring ReturnNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€1,549.62
DYNAQUIP CONTROLS PHG23ATD01A Ball Valve Pneumatic Actuated Double Act 1/2in | AG6TYD 46Z612 PHG23ATDA032AFKM, RPTFE1/2"Double ActingNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€679.66
DYNAQUIP CONTROLS PHG24ATD01A Ball Valve Pneumatic Actuated Double Act 3/4in | AG6TYE 46Z613 PHG24ATDA032AFKM, RPTFE3/4"Double ActingNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€697.82
DYNAQUIP CONTROLS PHG25ATD02A Ball Valve Pneumatic Actuated Double Act 1in | AG6TYF 46Z614 PHG25ATDA052AFKM, RPTFE1"Double ActingNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€810.67
DYNAQUIP CONTROLS PHG26ATD02A Ball Valve Pneumatic Actuated Double Act 1-1/4in | AG6TYG 46Z615 PHG26ATDA052AFKM, RPTFE1 1/4"Double ActingNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€1,006.46
DYNAQUIP CONTROLS PHG24ATS012A Ball Valve Pneumatic Actuated Double Act 3/4in | AG6TYJ 46Z618 PHG24ATSR05212AFKM3/4"Spring ReturnNickel PlatedChrome PlatedPTFE120 psiFNPT x FNPT€846.13
