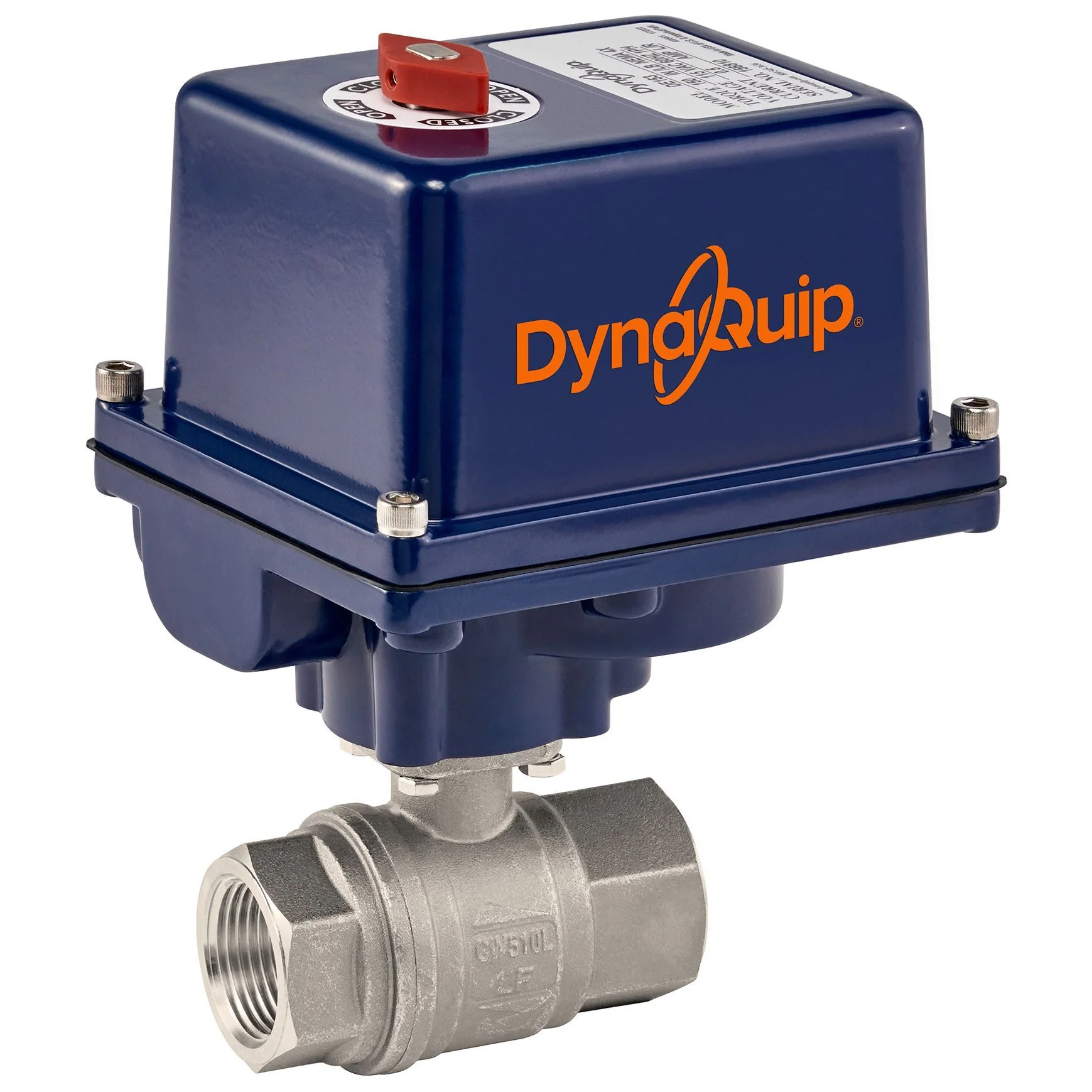

DYNAQUIP CONTROLS E2S21AJE23 Actuated Ball Valve, 1/4 in Size, 115 VAC, FNPT, Stainless Steel, Full Port, 1000 PSI CWP, RTFE/PTFE Seat
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Actuation | Electrically Actuated |
| Actuator Cycle Time | 2.5 sec. |
| Actuator Duty Cycle | 50% |
| Actuator Features | Manual Override, Position Indicator, Thermal Overload Protection |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Ambient Temp. | -40°F to +150°F |
| Average Surface Roughness (ra) | Not Applicable |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Stainless Steel |
| Coefficient Of Volume(cv) | 10 |
| Connection Gender | Threaded |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/4" |
| Connection Size-side 2 | 1/4" |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Control Type | Electrically Operated |
| Cwp | 1000 psi |
| Fail Safe Position | Fail Last |
| Flow Direction | 2 Way |
| For Media | Compressed Air, Natural Gas, Oil |
| General Connection Type | Female NPT |
| Handle Material | Without Handle |
| Handle Style | Electrically Operated |
| Included Mounting | ISO 5211 Actuator Mounting Pad |
| Ip Rating | IP66 |
| Max. Actuator Ambient Temp. | 150°F |
| Max. Media Temp. | 392°F |
| Max. Operating Pressure | 1000 psi |
| Max. Operating Pressure Differential | 500 psi |
| Max. Operating Temp. | 392°F |
| Max. Pressure | 1000 psi CWP |
| Max. Pressure-steam | 150 psi |
| Maximum Operating Pressure Differential | 500 psi |
| Min. Actuator Ambient Temp. | 40°F |
| Min. Media Temp. | -4°F |
| Min. Operating Temp. | 4°F |
| Mount | Direct |
| Mounting Type | Inline Threaded |
| Nema Enclosure Rating | 4, 4X |
| No. Of Ports | 2 |
| Nominal Valve Size | 1/4" |
| Overall Length | 2.95" |
| Pipe Schedule Compatibility | Not Applicable |
| Port | Full |
| Port Type | NPT |
| Porting Style | Full Port |
| Seal Material | PTFE, FKM |
| Seal Type | PTFE, Viton |
| Stem Seal Material | PTFE, Viton |
| Stem Type | Blowout Proof |
| Temp. | -4°F to +392°F |
| Type | Full Port |
| Valve Body Material | Stainless Steel |
| Valve Body Style | Straight |
| Valve Construction | 2 Piece |
| Valve Material | Stainless Steel |
| Valve Structure | 2 Piece |
| Valve Ways | 2 Way |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 25.4 |
