DYNAQUIP CONTROLS 191011B Electronic Ball Valve Stainless Steel 1/4 Inch | AD9MBP 4TL01

DYNAQUIP CONTROLS 191011B Electronic Actuated Ball Valve, 1/4 in Pipe Size, Full, 1000 psi CWP, 120V AC

Item: AD9MBPModel: 191011BCross Ref: 4TL01
7 In Stock

Ships within 2 days via

€817.65 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Elect. Actuated Ball Valve
3-a Certified Not Rated
Actuator Cycle Time-90° 2.5 sec.
Actuator Duty Cycle 50%
Actuator Features Manual Override, Position Indicator, Thermal Overload Protection
Actuator Motor Type Reversing
Actuator Operation 90°
Actuator Output Shaft Material 316 Stainless Steel
Actuator Series DE156 Series
Ambient Temp. -40°F to +150°F
Ball Material Grade 316
Ball Material Grade Stainless Steel
Ball Port Style Full Port
Ball Valve Product Group Actuated
Body Material Stainless Steel
Coefficient Of Volume(cv) 10
Connection FNPT
Connection Gender Side 2 Female
Connection Gender-side 1 Female
Connection Size-side 1 1/4"
Connection Size-side 2 1/4"
Connection Type FNPT x FNPT
Connection Type-side 1 NPT
Connection Type-side 2 NPT
Fail Safe Position Fail Last
For Media Compressed Air, Natural Gas, Oil
Included Mounting Iso 5211 Actuator Mounting Pad
Ip Rating IP66
Max. Actuator Ambient Temp. 150°F
Max. Media Temp. 392°F
Max. Pressure 1000 psi
Max. Pressure (cwp) 1000 psi
Max. Pressure Differential 500 psi
Max. Pressure-combustible Gas Not Rated
Max. Pressure-steam 150 psi
Max. Steam Pressure 125 psi
Max. Water Pressure 1500 psi
Media Temp. -4°F to +392°F
Min. Actuator Ambient Temp. -40°F
Min. Media Temp. -4°F
Mount Direct
Nema Enclosure Rating NEMA 4, NEMA 4X
No. Of Ports 2
Nominal Valve Size 1/4"
Overall Length 2.95"
Pipe Size 1/4"
Port Full
Rated For 1500 psi CWP, 125 psi Steam
Rated For 1500 psi CWP, 125 psi
Seal Material FKM, PTFE
Seat Material PTFE, RPTFE
Stem Grade Grade 316
Stem Material 316 Stainless Steel
Stem Type Blowout Resistant
Valve Body Style Straight
Valve Construction Two-Piece
Valve Series E2S
Valve Ways 2-Way
Voltage 115V AC

Shipping Info:

Ship weight (kg) 2.97
Ship height (cm)13.97
Ship length (cm)24.89
Ship width (cm)18.29
HS code8481809025
Country of OriginUS

Product Variants

ProductModelBody MaterialSeal MaterialMax. PressureStem TypeVoltageMax. Water PressureRated ForStem FinishPrice

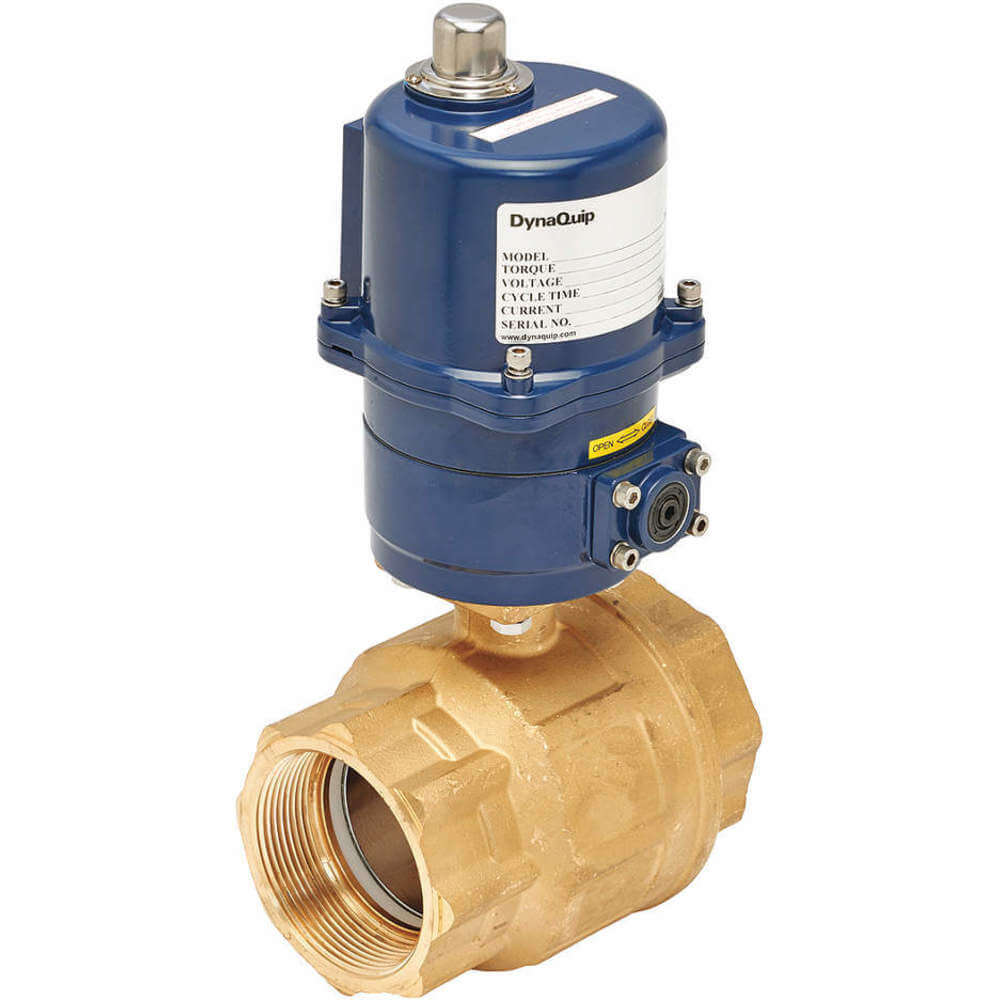

DYNAQUIP CONTROLS EHH2AATE01 Electronic Ball Valve Brass 3 Inch | AA8YZE 1AWD3 EHH2AATE01BrassFKM, PTFE600 psiBlowout Resistant115V AC600 psi600 psi CWPNickel Plated€3,972.67
DYNAQUIP CONTROLS EHH23ATE20H Electronic Ball Valve Brass 1/2 Inch | AA8YZF 1AWD4 EHH23ATE20HBrassFKM, PTFE600 psiBlowout Resistant12V DC/24V AC/DC600 psi600 psi CWPNickel Plated€775.37
DYNAQUIP CONTROLS EHH24ATE20H Electronic Ball Valve Brass 3/4 Inch | AA8YZG 1AWD5 EHH24ATE20HBrassFKM, PTFE600 psiBlowout Resistant12-24V AC/DC600 psi600 psi CWPNickel Plated€800.13
DYNAQUIP CONTROLS EHH25ATE20H Electronic Ball Valve Brass 1 Inch | AA8YZH 1AWD6 EHH25ATE20HBrassFKM, PTFE600 psiBlowout Resistant12-24V AC/DC600 psi600 psi CWPNickel Plated€864.06
DYNAQUIP CONTROLS EHH26ATE25H Electronic Ball Valve Brass | AA8YZJ 1AWD7 EHH26ATE25HBrassViton600 psiBlowout Proof-600 psi600 psi CWPNickel Plated€1,007.64
DYNAQUIP CONTROLS EHH27ATE25H Electronic Ball Valve Brass | AA8YZK 1AWD8 EHH27ATE25HBrassFKM, PTFE600 psiBlowout Resistant12-24V AC/DC600 psi600 psi CWPNickel Plated€1,113.95
DYNAQUIP CONTROLS EHH28ATE25H Electronic Ball Valve Brass 2 Inch | AA8YZL 1AWD9 EHH28ATE25HBrassFKM, PTFE600 psiBlowout Resistant12-24V AC/DC600 psi600 psi CWPNickel Plated€1,205.92
