DYNABRADE 51306 Air Die Grinder Straight 20k Rpm 0.5 Hp 27cfm
Item: AB8FNHModel: 51306Cross Ref: 25H873
7 In Stock
Ships within 2 days via
5.00% off
€767.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Die Grinder |
| Air Consumption | 27 CFM |
| Air Inlet | 1/4" NPT Female |
| Air Inlet Connection Size | 1/4" |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psig |
| Application | Deburring, Grinding, Polishing |
| Average Cfm @ 15 Sec. Run Time | 6.5 CFM |
| Cfm @ Full Load | 27 CFM |
| Characteristics | Gearless |
| Collet | 1/4" |
| Collet Insert | 1/4", 6 mm |
| Collet Size | 1/4" |
| Collet Type | 3 Piece |
| Duty | Heavy Duty |
| Duty Cycle | Heavy Duty |
| Exhaust Location | Front |
| Exhaust Type | Rear |
| Features | Gearless For Reduced Maintenance And Downtime |
| Free Speed | 20000 RPM |
| Grinder Orientation | Straight |
| Grinder Type | Straight |
| Handle Dia. | 1.7" |
| Handle Material | Composite |
| Hose Inside Dia. | 3/8" |
| Housing Material | Composite |
| Hp | 0.5 hp , 1/2 hp |
| Included | 1/4" Collet Insert Mfr. No. 50013, 3/8" Collet Insert Mfr. No. 50014, 6Mm Collet Insert Mfr. No. 50016, 8Mm Collet Insert Mfr. No. 50039 |
| Kit Contents | (1) Bare Tool |
| Max. Airflow | 27 SCFM |
| Max. Speed | 20000 RPM |
| Min. Hose Size | 3/8" |
| Min. Speed | 18000 RPM |
| No. Of Speed Settings | 1 |
| Orientation | Straight |
| Overall Length | 7" |
| Power Source | Air Powered |
| Required Pressure | 90 psi |
| Safety Stop Mechanisms | Safety-Lock Throttle Lever |
| Sound Level | 77 dBA |
| Spindle Gender | Male |
| Spindle Size | 3/8"-24 |
| Switch Type | Lever |
| Tether Style | Not Tether Capable |
| Throttle | Safety Lever |
| Tool Height | 1 7/8" |
| Tool Length | 9 1/5" |
| Tool Style | Straight Line |
| Tool Weight | 2.1 lbs. |
| Vacuum Type | Non Vacuum |
| Variable Speed | No |
| Watts | 373 W |
Shipping Info:
| Ship weight (kg) | 1.3 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 16.51 |
| HS code | 8467111040 |
| Country of Origin | US |
Product Details:
- Characteristics: Gearless
Product Variants
| Product | Model | Hp | Max. Speed | Collet Size | Switch Type | Exhaust Location | Overall Length | Duty | Handle Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
51300 | 1/2 hp | 15000 RPM | 1/4" | Lever | Rear | 7" | - | Composite | €762.39 | |
 |
51301 | 1/2 hp | 18000 RPM | 1/4" | Lever | Rear | 9 1/4" | Heavy Duty | Composite | €781.36 | |
|
51302 | 1/2 hp | 20000 RPM | 1/4" | Lever | Rear | 7" | - | Composite | €757.34 | |
 |
51303 | 1/2 hp | 24000 RPM | 1/4" | Lever | Front | - | Heavy Duty | Composite | €758.46 | |
 |
51304 | 1/2 hp | 15000 RPM | 1/4" | Lever | Rear | 7" | Heavy Duty | Composite | €783.14 | |
 |
51305 | 1/2 hp | 20000 RPM | 1/4" | Lever | Front | 7" | Heavy Duty | Composite | €793.26 | |
 |

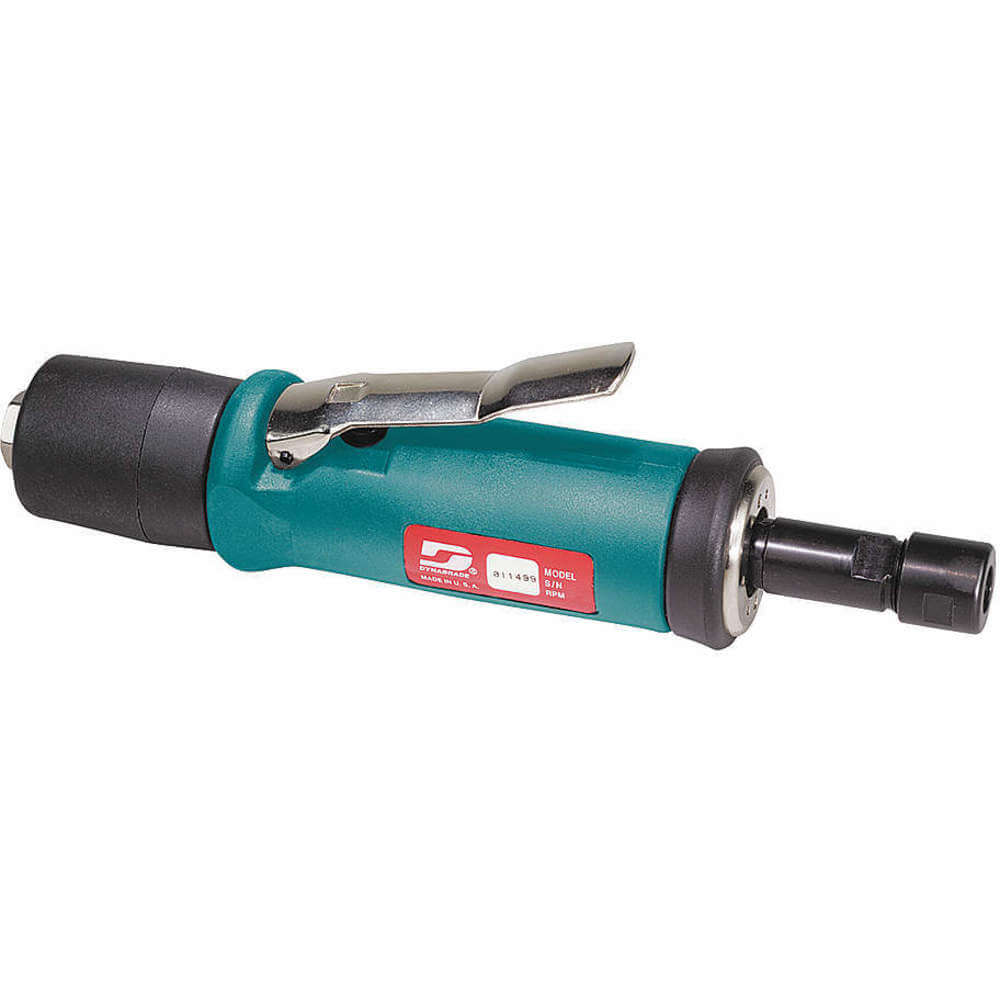

51307 | 1/2 hp | 24000 RPM | 1/4" | Lever | Front | 7" | Heavy Duty | Composite | €894.64 |
