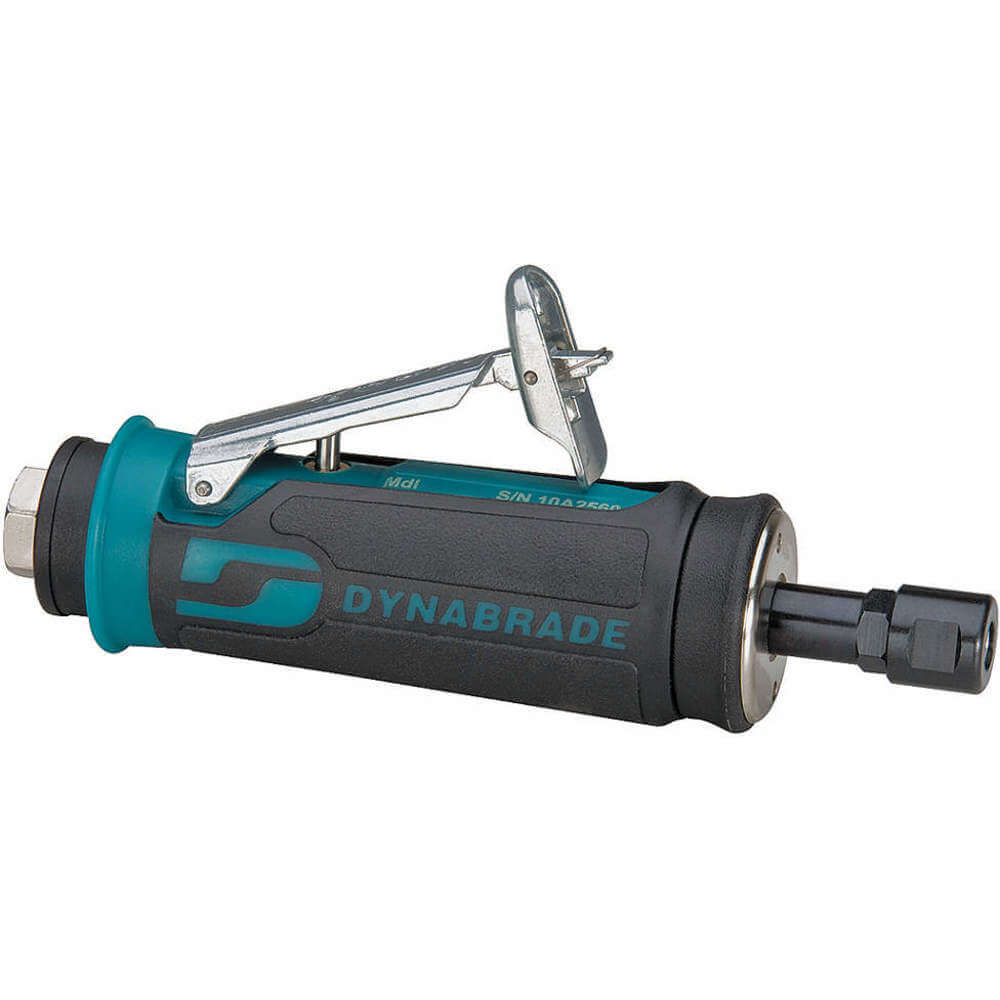

DYNABRADE 48345 Air Die Grinder Straight 30k Rpm 0.4 Hp 23cfm
Item: AB8FMDModel: 48345Cross Ref: 25H846
7 In Stock
Ships within 2 days via
10.00% off
€654.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Die Grinder |
| Air Consumption | 23 CFM |
| Air Inlet | 1/4" NPT Female |
| Air Inlet Connection Size | 1/4" |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Anti-restart Technology | Yes |
| Application | Deburring, Finishing, Material Removal, Polishing |
| Average Cfm @ 15 Sec. Run Time | 5.75 CFM |
| Cfm @ Full Load | 23 CFM |
| Characteristics | (3) Vane Rotor, Ergonomic Housing, Governor Controlled Motor, Hardened Tool Cylinder, Innovative Air Flow Channel, Lightweight |
| Collet | 1/4" |
| Collet Size | 1/8", 3 mm |
| Duty | Heavy Duty |
| Duty Cycle | Heavy Duty |
| Exhaust Location | Rear |
| Exhaust Type | Standard Rear |
| Features | (3) Vane Rotor, Comfortable Tactile Grip, Ergonomic Oval-Shaped Tool Housing, Gearless, Governor Controlled Motor, Hardened Tool Cylinder, Innovative Air Flow Channel, Lightweight |
| Free Speed | 30000 RPM |
| Grinder Orientation | Straight |
| Grinder Type | Straight |
| Handle Material | Composite |
| Horsepower | 0.4 hp |
| Hose Inside Dia. | 1/4" |
| Housing Material | Composite |
| Hp | 2/5 hp |
| Includes | 1/8" Collet Insert Mfr. No. 01495, 3Mm Collet Insert Mfr. No. 01496 |
| Kit Contents | (1) Bare Tool |
| Lock-off Switch | Yes |
| Material Application | Carbon Fiber, Composites, Fiberglass, Metal |
| Max. Speed | 30000 RPM |
| Min. Hose Size | 1/4" |
| Minimum Speed | 30000 RPM |
| Number Of Speed Settings | 1 |
| Orientation | Straight |
| Overall Length | 6" |
| Power Source | Air Powered |
| Required Pressure | 90 psi |
| Safety Features | Safety Lock Lever |
| Safety Stop Mechanisms | Safety-Lock Throttle Lever |
| Sound Level | 82 dBA |
| Switch Type | Lever |
| Tether Style | Not Tether Capable |
| Throttle | Safety Lever |
| Tool Length | 6.5" |
| Tool Style | Straight Line |
| Tool Weight | 0.9 lbs. |
| Variable Speed | No |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 25.4 |
| HS code | 8467111040 |
| Country of Origin | US |
Product Details:
- Characteristics: (3) Vane Rotor, Governor Controlled Motor, Ergonomic Housing, Lightweight, Innovative Air Flow Channel, Hardened Tool Cylinder
Product Variants
| Product | Model | Hp | Max. Speed | Overall Length | Collet Size | Exhaust Location | Tool Weight | Air Pressure | Air Consumption | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
48360 | 2/5 hp | 20000 RPM | 6" | 1/4", 6 mm | Front | 0.9 lbs. | 90 psig | 23 CFM | €722.51 | |
 |
48325 | 2/5 hp | 25000 RPM | 6 1/8" | 1/4", 6 mm | Front | 0.9 lbs. | 90 psig | 23 CFM | €676.06 | |
|
48327 | 2/5 hp | 30000 RPM | 6 3/4" | 1/4", 6 mm | Rear | 0.9 lbs. | 90 psig | 23 CFM | €689.75 | |
 |
48355 | 2/5 hp | 35000 RPM | 13 5/8" | 1/4", 6 mm | Rear | 0.9 lbs. | 90 psig | 23 CFM | €779.36 | |
 |
47202 | 2/5 hp | 5500 RPM | 12 7/8" | 1/4", 6 mm | Rear | 1.4 lbs. | 90 psig | 23 CFM | €1,252.85 | |
|
47201 | 2/5 hp | 3200 RPM | 8 1/8" | 1/4", 6 mm | Rear | 1.4 lbs. | 90 psig | 23 CFM | €1,204.70 | |
 |
48201 | 2/5 hp | 25000 RPM | 6" | 1/4", 6 mm | Front | 0.9 lbs. | 90 psig | 23 CFM | €865.22 |
