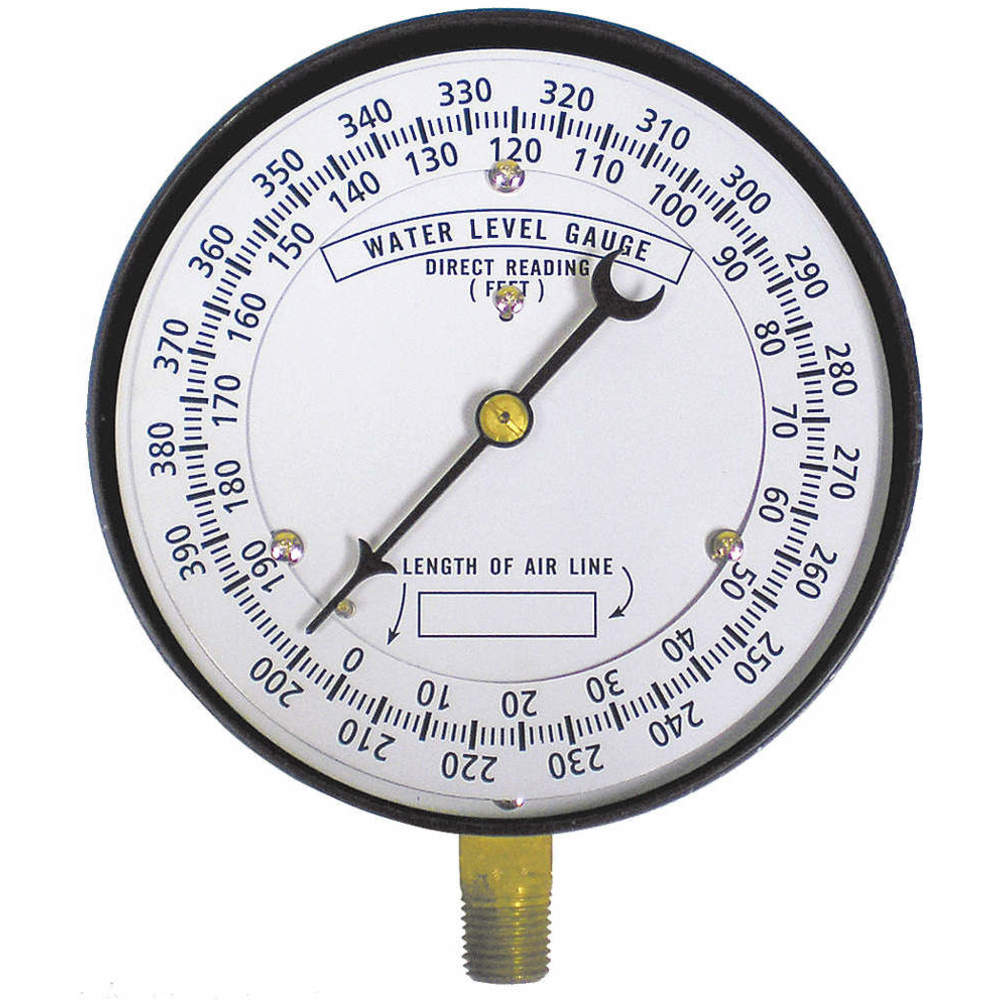

DURO CA566 Well Water Level Gauge 0 to 390 Feet
Item: AG9HNJModel: CA566Cross Ref: 20LK20
7 In Stock
Ships within 2 days via
10.00% off
€196.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Well Water Level Gauge |
| Accuracy | -2% to +2% |
| Accuracy Grade | ASME B40.1 Grade B |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Application | Test and Measurement |
| Basic Gauge Case Material | Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Corrosion Resistant |
| Case Material | Steel |
| Compatible Process Media | Water |
| Connection Location | Bottom |
| Connection Size | 1/4" |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Size | 4 1/2" |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Panel Mountable | No |
| Gauge Socket Material | Brass |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | No |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Bronze |
| Movement Type | Rotary |
| Nominal Dial Size | 4 1/2" |
| Operating Temp. Range | -40°F to +150°F |
| Panel-mountable | No |
| Pointer Characteristics | Balanced |
| Pointer Color | Black |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Well Depth Gauge |
| Pressure Range Type | Pressure |
| Primary Application | Test |
| Primary Pressure Range | 0 to 390 |
| Primary Scale Minor Graduations | 1 |
| Primary Scale Units | ft. h2o |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 ft. wc to 390 ft. wc |
| Reads Head Pressure | No |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Material | Phosphor Bronze |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 1 ft. |
| Socket Material | Brass |
| Wetted Materials | Brass, Bronze |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.46 |
| Country of Origin | CN |
Product Details:
- Gauge Accuracy : +/-2.00%
- Pressure and Vacuum Gauge Type : Pressure Gauge
- Gauge Panel Mountable : No
- Liquid Filled : No
