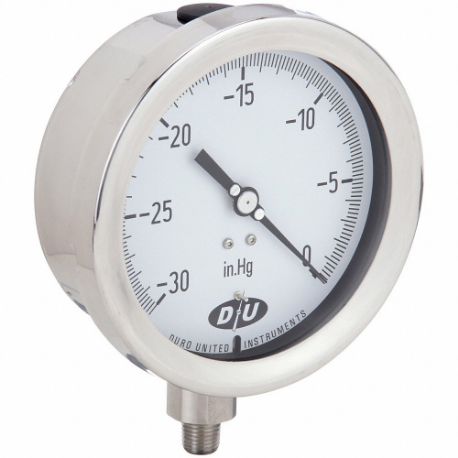

DURO 4.2070113E7 Industrial Vacuum Gauge, 30 to 0 Inch Size Hg, 4 1/2 Inch Size Dial
Item: CP3XZDModel: 4.2070113E7Cross Ref: 442Y03
7 In Stock
Ships within 2 days via
10.00% off
€287.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -30°F to +250°F |
| Ambient Temp. Range | -30°F to +250°F |
| Application | Chemical Industries, Oil And Gas Industry |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Chrome |
| Case Construction | Corrosion Resistant |
| Case Depth | 2 8/25" |
| Case Dia. | 5 1/25" |
| Case Diameter | 5.04" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| For Use With | Media Compatible With 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Primary Range Units | In Hg |
| Gauge Secondary Range Units | Bar |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Hardware Included | No |
| Mounting Type | Back Flange |
| Movement Material | Stainless Steel |
| Movement Type | Rotary |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Characteristics | Lightweight Balanced Construction With Micrometer Adjustment |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 in. hg to 30 in. hg |
| Pressure Range Type | Vacuum |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 0.2 |
| Primary Scale Units | in. hg |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | -1 Bar to 0 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | Series 20 |
| Socket Material | Stainless Steel |
| Standards | Asme/Ansi |
| Vibration Resistance | None |
| Wetted Materials | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pressure Range Type | Secondary Pressure Range | Primary Scale Minor Graduations | Primary Pressure Range | Primary Scale Units | Smallest Graduation | Range | Graduations | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4.2072413E7 | Compound | 0 Bar to 7 Bar | 2 | 0 psi to 100 psi | In. Hg/psi | - | - | - | €319.30 | |
 |
4.2072113E7 | Compound | 0 Bar to 1 Bar | 0.5 | 0 psi to 30 psi | In. Hg/psi | - | - | - | €319.30 | |
 |
4.2072213E7 | Compound | 0 Bar to 2 Bar | 0.5 | 0 psi to 30 psi | In. Hg/psi | - | - | - | €319.30 | |
 |
4.2072713E7 | Compound | 0 Bar to 20.7 Bar | 2 | 0 psi to 300 psi | In. Hg/psi | - | - | - | €319.30 | |
 |
4.2072313E7 | - | 0 Bar to 4 Bar | 1 | 0 psi to 60 psi | In. Hg/psi | - | - | - | €319.30 | |
 |
4.2071313E7 | Pressure | 0 Bar to 69 Bar | 5 | 0 psi to 1000 psi | Psi | 50 psi | 0 psi to 1000 psi | 50 psi | €319.30 | |
 |
4.2070513E7 | Pressure | 0 Bar to 7 Bar | 1 | 0 psi to 100 psi | Psi | 5 psi | 0 psi to 100 psi | 5 psi | €319.30 |
