DORIAN D30BXA-2 Tool Holder Turning/facing/boring Bxa
Item: AC8PPKModel: D30BXA-2Cross Ref: 3CYD9
7 In Stock
Ships within 2 days via
10.00% off
€137.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tool Holder |
| Application | V-Groove Allows Either Square Shank Indexable Toolholders Or Boring Bars To Be Held Close To The Tool Post When Turning, Facing, Threading Or Boring |
| Capacity | 1" |
| Compatible Tool Type | Indexable Boring Bars, Indexable Thread-Turning Toolholders, Indexable Turning Toolholders |
| Compatible With Manufacturer Model Number | SDN30BXA |
| Dimension A | 0.437" |
| Dimension B | 0.625" |
| Dimension C | 3 1/4" |
| Dimension D | 1 1/4" |
| Dimension E | 1 3/4" |
| Dimension F | 1.115" |
| Dimension G | 0.674" |
| Features | Fits Industry Standard Tool Posts |
| For Max Lathe Swing | 15" |
| For Max Shank Size | 1" |
| For Min Lathe Swing | 13" |
| For Min Shank Size | 5/8" |
| For Shank Height | 1" |
| For Shank Shape | Round, Square |
| For Shank Type | Square |
| For Tool Post Series | BXA Series |
| Max Centerline Height | 1.977" |
| Overall Height | 2 1/4" |
| Overall Width | 3 1/4" |
| Tool Post Holder Type | Facing And Boring, Turning |
| Type | Facing And Boring, Turning |
Shipping Info:
| Ship weight (kg) | 0.98 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 6.1 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Details:
- Dimension F1 (In.) (2.071)
- Dimension G1 (In.) (0.956)
Product Variants
| Model | Capacity | Overall Width | Dimension C | Dimension A | Dimension B | Dimension D | Dimension G | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

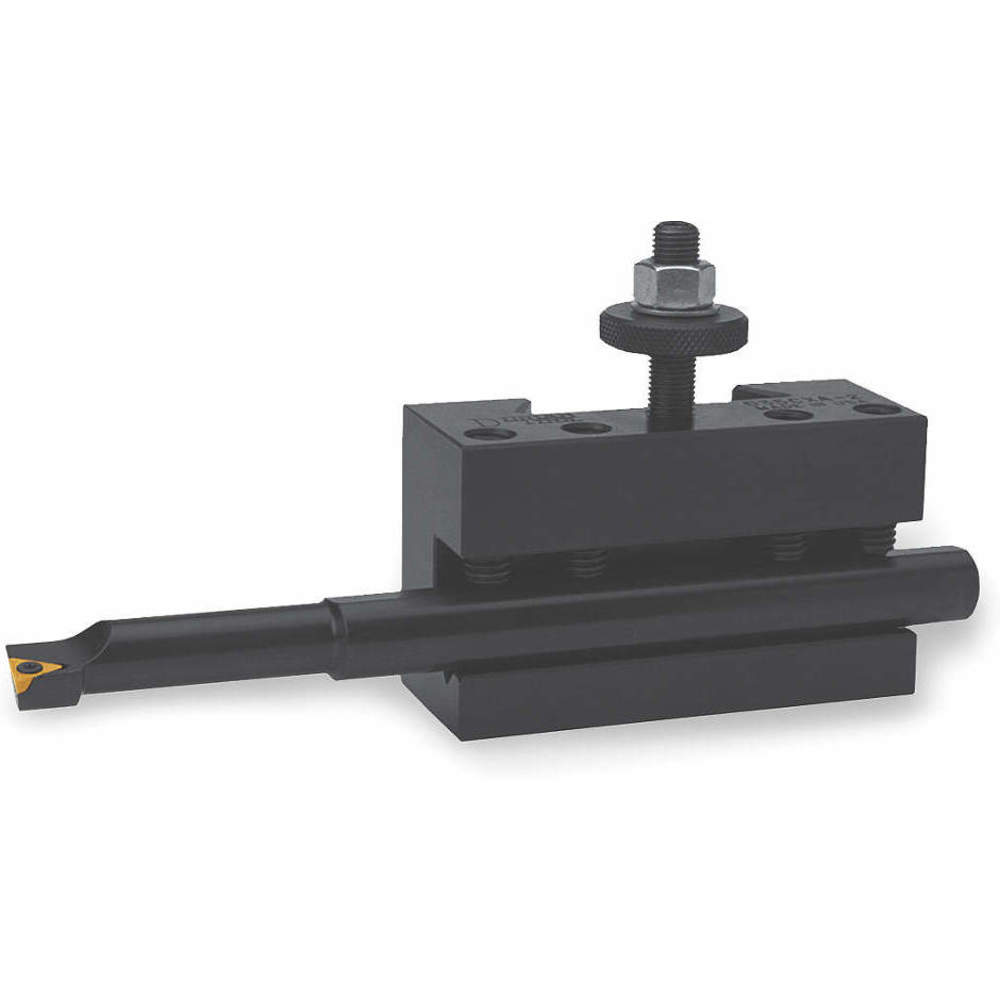

| D25AXA-2 | - | 2 3/4" | - | 3/8" | 0.5" | 1" | 0.549" | 1 1/2" | €126.19 | |
| D35CXA-2 | 1" | 3 3/4" | 3 3/4" | 1/2" | 0.75" | 1 1/2" | 0.861" | 2 1/4" | €182.86 | |
| D40CA-2 | 1 1/4" | 4 1/2" | 4 1/2" | - | - | - | 0.986" | - | €227.63 | |
| D50DA-2 | - | 6" | 6" | 3/4" | 1.25" | 2 1/4" | - | 3 1/4" | €363.43 | |
| D60EA-2 | - | 7" | 7" | 1" | 1.5" | 3" | - | - | €479.22 |
